Metal grid fence AREZZO
galvanized steelsteelpowder-coated steel

metal grid fence
metal grid fence
metal grid fence
metal grid fence
metal grid fence
metal grid fence
metal grid fence
Add to favorites
Compare this product


Characteristics

Configuration
metal grid
Material
galvanized steel, steel, powder-coated steel
Applications
for public spaces
Other characteristics
security, modular, electro-forged, with steel framework

Description

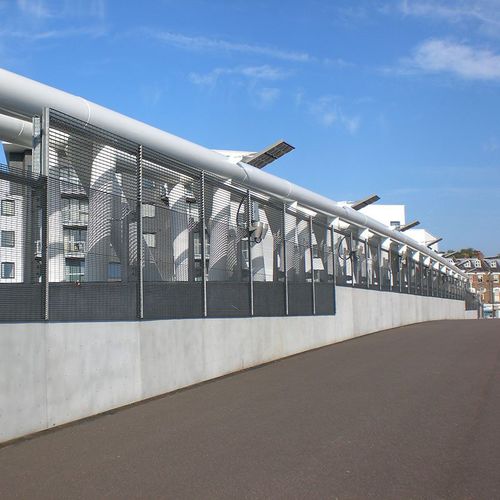

Arezzo-25 is a barrier fence which is individually designed to suit the loading demands of a particular project such as a parapet situation or for crowd control at sports stadia. Panels are combined in multiples of 1000mm to create a fence of the required height. Panels, which are made with a horizontal bearing bar, and posts are supplied to comply with EN 1991-1-1:2002 for barrier fencing. The weight of flat bar and the section of post will be calculated according to loading requirement. Mesh (c/c): 76×25 mm Standard Panel Heights: 1000, 2000, 3000 mm Standard Panel Width: 2510 mm. RHS Post: 100×50, 100×60. 150×150 mm (depending on height) In addition to the standard panel, a narrow width closing panel will be provided to suit the end of a fence run. Extra wide panels (<2510mm) can be supplied by increasing the flat bar section. Swing-hinged single or double leaf, bi-folding, pivot and sliding gates are made with matching infill panels. Arezzo-15 with a smaller 15×76 mm aperture or one of the fences from the Torino range can also be used to create custom-designed barrier fencing to a required loading. Panels and posts are supplied hot-dip galvanized with an optional polyester powder coating in any RAL colour. All grating fences are made in compliance with BS 1722-14.
