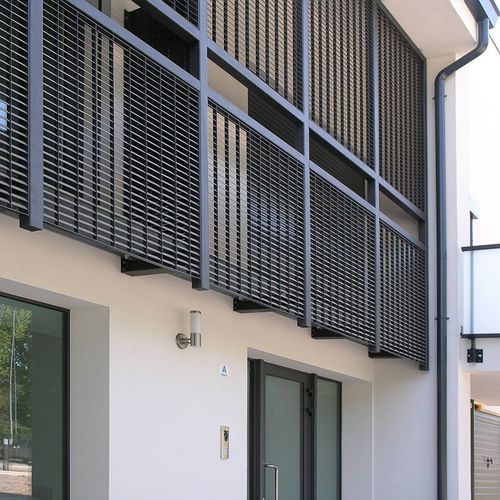

Panel screening DELTABOX
galvanized steel

panel screening
panel screening
panel screening
panel screening
panel screening
panel screening
panel screening
Add to favorites
Compare this product


Characteristics

Type
panel
Material
galvanized steel

Description

DeltaBox is a steel louvred panel system for screening applications, which is notable for its durability and the perfectly formed intersections which form a crisp geometric aesthetic. It is made in a range of specifications, offering a choice of total or partial visual screening with a corresponding level of free area for ventilation. Framed panels are made to custom-sizes up to 3m2 (e.g. 2000x1500mm) for a wide variety of applications: wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies and balustrades, wheelie bin stores and brise soleil. The robust steel construction is particularly suitable for ground and street-front locations. The louvred panel is manufactured from inclined flat bars set at 45o, which are pressure locked to in-line vertical flat bars. The louvres can be spaced at any increment of 11mm to provide the required level of screening/free area to meet particular requirements. Vertical bars are generally spaced at 132mm but this is also variable. DeltaBox-100: 22mm louvre spacing, 100% visual screening, 60% free area DeltaBox-90: 33mm louvre spacing, 90% visual screening, 63% free area DeltaBox-70: 44mm louvre spacing, 70% visual screening, 65% free area DeltaBox-45: 66mm louvre spacing, 45% visual screening, 66% free area DeltaBox-34: 67mm louvre spacing, 34% visual screening, 67% free area Panels and ancillary steelwork can be supplied galvanized only or galvanized and powder coated to any RAL colour.
