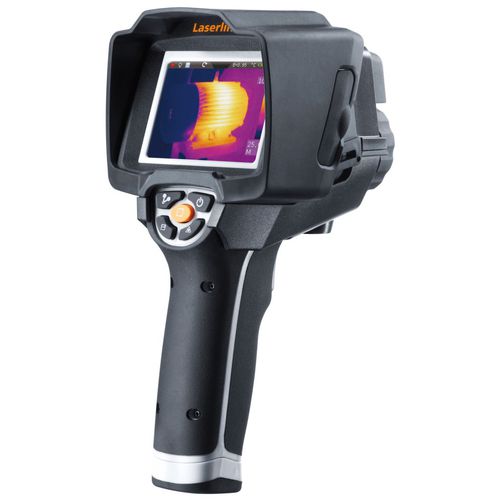

Portable thermal camera VISION

indoorinfrared

Universal, high resolution thermal camera for professional applications in construction, photovoltaics, electrical engineering and mechanical engineering Description: – Large, high-resolution 3.5" colour display with touch screen for direct control and analysis – 160 x 120 pixel infrared sensor with focusable interchangeable lens (optional) enables detailed and varied image analysis – 50 fps high-speed infrared sensor suitable for fast and dynamic procedures – Large measuring range from -20°C to 400°C – QuickRange-Setup: Optimum measurement range set with hot key – Analysis in various image modes - Full screen: Infrared/digital image, Picture-in-picture: Infrared/digital image, digital image/infrared MIX image: Crossfade infrared/digital image with masking function – Standard colour palettes and CustomColorPalettes, freely definable user-specific colour palettes – Measured value correction for ambient and offset temperature, relative humidity, measuring distance – Extended real-time analysis: 3 measuring points, 2 measuring lines (horizontal/vertical), 3 measuring areas (with min/max/avg with min/max/ avg calculation) – Automatic hot/cold point marking and isothermal function – Image and video recordings for documentation with additional voice recording and text notes Technical Data: IR sensor: 160 x 120 pixel resolution, 50 fps Uncooled microbolometer, 8-14 ?m IR optics: Germanium interchangeable lens 33° x 24° / 0,3 m FOV 3.33 mrad IFOV Manual focus, 0.3 m min. Thermal sensitivity: NETD 0.08°C Accuracy: ± 2°C or ± 2% of measured val
