Acoustic wall panel LINEA TOUCH

Douglas firsolid woodoak

Product overview

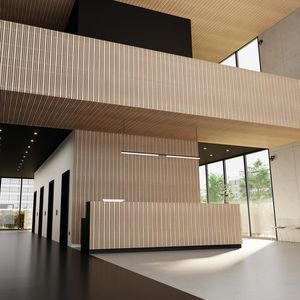

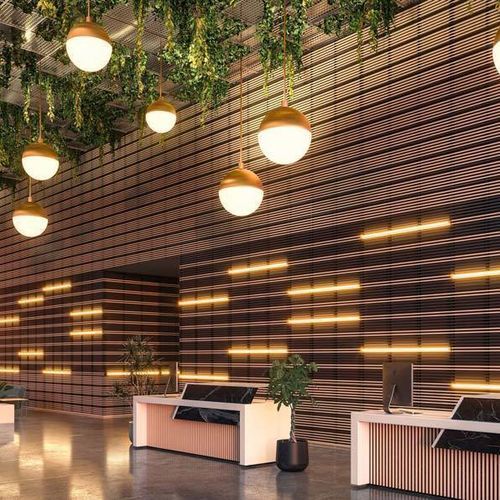

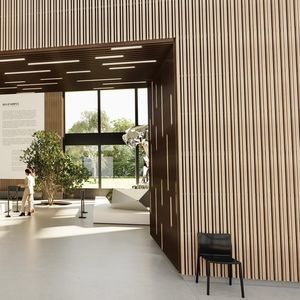

Solid wood acoustic wall panel designed for interior wall cladding. Linea Touch Wall is configurable and enables numerous layout options by combining slat thicknesses, slat sections and finishes. Panels are formed of wooden slats mounted on a black rear counter-slat system with an acoustic back panel (mineral wool/rockwool not supplied by Laudescher).

Configurator
Use the online configurator to visualise panel compositions, test different slat sections, thicknesses and finishes, and create tailored patterns for project-specific applications.

Key features

• Screw-on panel suitable for metal or wood framing
• Configurable: mix slat thicknesses and colours
• Two slat sections available (20 x 42 mm and 20 x 22 mm)
• Choice of varnish or wax colour finishes (12 options)

Wood and finishes

• Wood species: Pine
• Example slat finish: clear varnish
• Wax colour finish examples: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black (total selection includes 12 varnish or wax options)
• Counter-slat finish example: Black

Acoustic performance
Weighted sound absorption index: αw = 0.80
Absorption class: Class B
Acoustic values (αp, αw, class) calculated according to ISO 11654 (configuration: LINEA + acoustic complement + LR 20 mm on E50 mm plenum).

Reaction to fire / Finish
Euroclass B-s1,d0 or B-s2,d0 depending on wood species and finish.

Installation
Suitable for installation on T24 grid or by screwing.
Standards: NF EN 13964 and DTU 58-1.

Back panel
Rigid acoustic mineral wool slabs (2.4 kg/m²) covered with black fleece (size: 600 x 600 mm; thickness: 20 or 22 mm). Back panel not supplied by Laudescher.

Technical table
Panel dimensions: 2495 x 600 mm; 1880 x 600 mm; 1265 x 600 mm
Slat cross-sections: 20 x 42 mm (face x height) and 20 x 22 mm (face x height)
Slat spacing: 30 mm
Black rear counter-slats: 34 x 45 mm
Total panel thickness: 69 mm
Wood species: Pine
Area density (pine): 10.5 kg/m²
Openness percentage: 60%

Suggested combinations / Use cases
Recommended for wall cladding in commercial and institutional interiors; can be paired with Linea ceiling variants to create coordinated acoustic interiors.

Technical specifications

• Product type: Solid wood acoustic wall panel (configurable)
• Model family: Linea Touch
• Available panel dimensions: 2495 x 600 mm; 1880 x 600 mm; 1265 x 600 mm
• Available slat cross-sections: 20 x 42 mm and 20 x 22 mm
• Slat spacing: 30 mm
• Rear counter-slat: 34 x 45 mm (black)
• Total thickness: 69 mm
• Wood species: Pine
• Area density (pine): 10.5 kg/m²
• Openness: 60%
• Acoustic performance: αw = 0.80, Absorption class B (ISO 11654 test configuration specified)
• Reaction to fire: Euroclass B-s1,d0 or B-s2,d0 depending on species and finish
• Installation: T24 grid or screwed installation (NF EN 13964, DTU 58-1)
• Back acoustic panel: mineral wool slabs 2.4 kg/m², black fleece (600 x 600 mm; 20 or 22 mm) — not supplied
• Finish options: clear varnish and multiple wax colour finishes (selection includes White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black, etc.)
