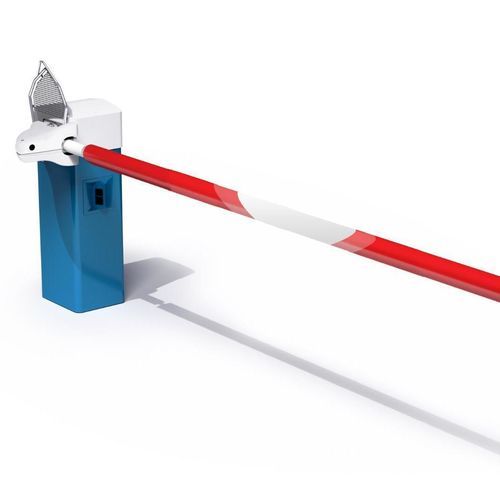

Parking barrier 63 PG FLEX

access controlboomaluminum

THE GLOBAL REFERENCE FOR HIGHWAY TOLLING

Adjustable variable speed from 0.6 to 1.2 seconds
Intensive continuous operation, 20,000 cycles/day
Unique patented boom validated for more than 1,200 impacts without breakage
Front anti-rebound unhitching system and controlled automated re-hitching
Tool-free boom replacement

STANDARD FEATURES

• Variable speed: Adjustable from 0.6 seconds
• Intensive continuous operation: 20,000 cycles/day
• Boom: Length up to 3.5 m, Ø 85 mm with reflective strips
• Gear motor: Three-phase / Single-phase 230V power supply
• Spring: Compression compensation
• Housing: Treated steel sheet with Ronis 405 lock
cataphoresis + standard RAL 5015
• Cover: 2 mm thick aluminum sheet with RAL 9010 paint
• ONE-C control board including: Power supply,
controller, frequency inverter, SD, RJ45 (Modbus)
• ONE-SENSE sensor: Automatic motor management and control
• Unhitching: Anti-rebound & controlled automated re-hitching

TECHNICAL SPECIFICATIONS

Maximum length: 3.5 meters
Flex boom: Yes
Power supply: 230 V
Consumption: Three-phase motor 0.18 kW
Gear motor: Reversible gear reducer
Compensator: Compression spring + chain and sprocket
Boom: FLEX boom – Other option: Ø 85 mm carbon + foam
Operating time: From 0.6 seconds (variable depending on options)
MCBF (number of cycles): ≥ 10 million
MTBF (hours): ≥ 15,000
MTTR (min): Less than 15 minutes
Maximum boom length: 3.5 m
Emergency operation: Automatic raising in the event of power failure
Foundation dimensions (LxWxH): 600 x 600 x 800 mm
Operating temperature: -30° +55° C
IP: 54
