Articulated security grill GTH

aluminumfull-height

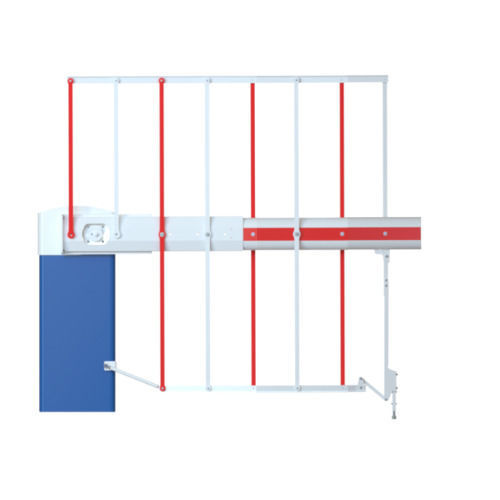

FULL-HEIGHT ARTICULATED GRILLE

Aluminum flat bars
Closure of the space above the boom in closed position
Full closure of the passage

STANDARD FEATURES

• Grille: Full-height aluminum grille from 2 to 7.5 m with upper grille extended over the barrier housing
• Visual signaling: Red and white reflective bands
• Articulation: Guided with folding along the boom on both sides
• Bars: Aluminum bars painted white and red
• Available on: LBA 6, LBA 7, LBA 86 and LBA 12

TECHNICAL SPECIFICATIONS

Bars / Flats: Aluminum flat bar 25 x 3 x 1765 mm
Max length: 7.5 m
Height: 1850 mm
Coating: Polyester powder coating, white and red RAL 9010 and RAL 3020

Boom: Side boom with red reflective strip:
• 84 x 57 mm - LBA 6 and 7 (up to 4.50 m)
• 135 x 93 mm - LBA 86 (up to 7 m)
• 180 x 118 mm - LBA 12 and 86 (up to 7.5 m)

Support rest or prop: Yes
