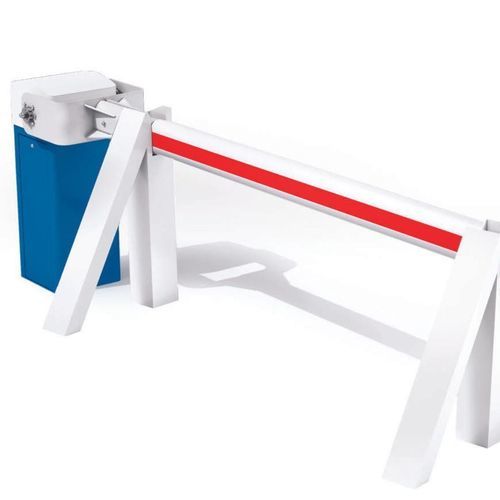

Vandal-proof barrier 86 AVB

boomaluminumfor sensitive sites

THE ESSENTIAL ANTI-VANDAL SOLUTION DESIGNED FOR
SENSITIVE SITES

Adjustable variable speed from 2.1 to 5 seconds
Continuous operation, 10,000 cycles/day
High-resistance reinforced boom 180 x 118 mm
Anti-vandal package
Automatic raising in case of power failure possible

STANDARD FEATURES

• Speed: Variable from 2.1 seconds
• Continuous operation: 10,000 cycles/day
• Boom: High-resistance reinforced axial oval aluminum
180x118 mm from 2 to 8 m with reflective strips
• Supports: Reinforced with anti-ram vehicle support leg
• Gearmotor: Three-phase / Power supply 230V single-phase
• Spring: Compensation by compression
• Cabinet: Steel sheet treated with Ronis 405 lock
cataphoresis + standard RAL 5015
• Cover: Aluminum sheet thickness 2 mm, RAL 9010 paint
• ONE-C control board including: Power supply,
controller, frequency inverter, SD, RJ45 (Modbus)
• ONE-SENSE sensor: Automatic motor management and control
• Reducer: Reversible/irreversible (to be defined)

TECHNICAL SPECIFICATIONS

Maximum length: 6 m
Lower articulated skirt: yes
Upper and lower skirt: yes
HP skirt: yes
Power supply: 230 V
Gearmotor: Irreversible or reversible reducer (optional)
Compensator: Compression spring + lever arm and oscillating post (reversible only)
Boom: White lacquered reinforced oval aluminum 180 x 118 mm
Operating time: From 2.1 seconds (variable depending on options)
MCBF (number of cycles): ≥ 5 million
MTBF (hours): ≥ 15,000
MTTR (min): Less than 15 minutes
Maximum boom length: 6 m
Emergency operation: Irreversible gearmotor: by crank handle - Reversible gearmotor: automatic raising in case of power failure
Temperature control: Anti-condensation heating
Finishes: Polyester powder baked at 250°
Weight: From 187 to 198 kg
Foundation dimensions (LxWxH): 800 x 800 x 1000 mm
Operating temperature: -30° +55° C
IP rating: 54
