Access control totem TSCcontroloutdoordigital
Add to favorites
Compare this product
Characteristics
- Type
- control
- Other characteristics
- outdoor, digital, LED, double-sided, electronic, indoor, for retractable bollards, illuminated, triangular, portable
- Material
- steel
- Market
- for urban areas, for airport, for public use, terminal, outdoor, for access control
Description

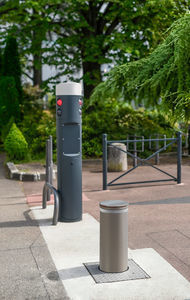

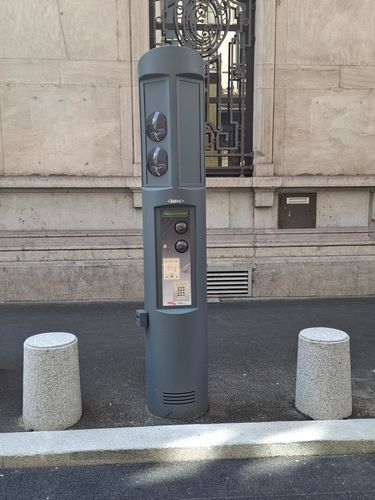

DESIGN TECHNICAL TOTEM
FOR CONTROL LOGIC & ACCESS CONTROL
Innovative design with its elliptical shape
Allows integration of a TY1, TY2, or TY4 technical module
Possibility to integrate a screen for real-time visualization of the front of the vehicle
Prepared for integration of access control systems
STANDARD FEATURES
Height: 250 cm
Elliptical shape
• Elliptical totem:
• Steel totem thickness 2 mm treated by cataphoresis and epoxy powder coating RAL 7016
• Elliptical shape with dimensions: length 448 mm and width 331 mm
• Height 2,500 mm
• Hinged door
• Sealing gasket around the door perimeter
• Management plate mounted on hinges
• 2 faces equipped for lighting and access control: height 695 mm x width 264 mm, oriented in both traffic directions
• 1 access control face: height 695 mm x width 244 mm, oriented parallel to the direction of traffic
• Inclined top
• Natural ventilation
• Locking:
• Locking by 2 compression locks
TECHNICAL SPECIFICATIONS
Paint / Finish: Steel RAL 7016
Shape: Elliptical 448 x 331 mm
Height: 2,500 mm
IP: 54
FOR CONTROL LOGIC & ACCESS CONTROL
Innovative design with its elliptical shape
Allows integration of a TY1, TY2, or TY4 technical module
Possibility to integrate a screen for real-time visualization of the front of the vehicle
Prepared for integration of access control systems
STANDARD FEATURES
Height: 250 cm
Elliptical shape
• Elliptical totem:
• Steel totem thickness 2 mm treated by cataphoresis and epoxy powder coating RAL 7016
• Elliptical shape with dimensions: length 448 mm and width 331 mm
• Height 2,500 mm
• Hinged door
• Sealing gasket around the door perimeter
• Management plate mounted on hinges
• 2 faces equipped for lighting and access control: height 695 mm x width 264 mm, oriented in both traffic directions
• 1 access control face: height 695 mm x width 244 mm, oriented parallel to the direction of traffic
• Inclined top
• Natural ventilation
• Locking:
• Locking by 2 compression locks
TECHNICAL SPECIFICATIONS
Paint / Finish: Steel RAL 7016
Shape: Elliptical 448 x 331 mm
Height: 2,500 mm
IP: 54
