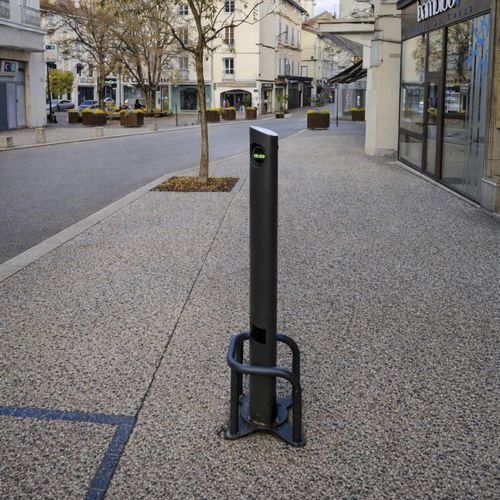

Parking bollard BAM

quick stopaluminumfor public space

SHORT-STAY PARKING BOLLARD: A SOLUTION FOR MANAGING FREE, TIME-LIMITED PARKING
ELLIPTICAL SHAPE – HEIGHT 156 CM

The BAM bollard provides an efficient solution for managing free, time-limited parking. It features a visible LED countdown display and sends alerts in case of overtime parking, helping to reduce misuse. Installation is simple and requires no civil engineering thanks to integrated sensors. It is ideal for commercial areas, city centers, and regulated short-stay parking zones.

• Ensures constant turnover, preventing long-term parking abuse and “parked indefinitely” vehicles
• No civil engineering required for installation thanks to integrated sensors
• Parking management with optional remote supervision and email alert system
• Customizable signage (delivery, disabled parking, no parking, etc.)
• No ground works needed due to integrated sensors

Technical Characteristics
Cylinder:

• 4 mm thick aluminum
• RAL 7016 finish
• Elliptical shape: 229 mm length × 144 mm width
• Height: 1560 mm
• Sloped top
• Single bollard for managing one parking space
• Double bollard for managing two adjacent spaces

Display:

• LED display showing remaining time and overtime
• 7 operating modes: short-stay parking, delivery reserved, free parking, standby, no parking, disabled parking, scrolling text display

Operation:

• Locking system with 2 compression locks
• Operating consumption: < 500 mA (6W)
• RS485 connectivity for shared supervision via LBA Connect across multiple bollards
• Configurable locally or remotely via LBA Connect

Technical Specifications

• Voltage: 12 V
• Power: 3–6 W
• Power supply: 230 V / Solar / Battery
• Connection cable: RS485 wired or wireless for supervision
• Coating / Finish: RAL 7016
• Dimensions: Elliptical, height 1560 mm – approx. 23 × 15 cm
• Protection rating: IP54
