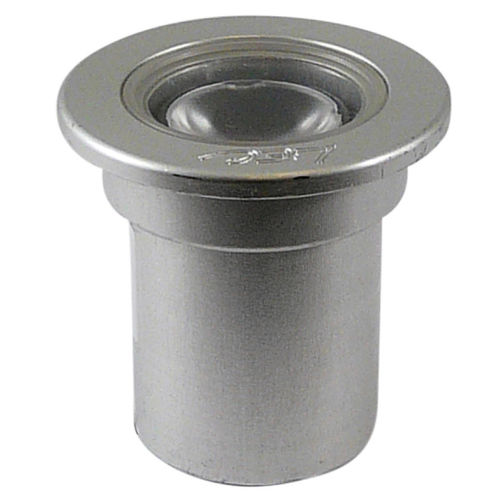

«Mini» version in the round flush recessed raking light range. The flange hides recess plate imperfections.
For versions with recessed elements, see BOURGOGNE.
APPLICATIONS:
Highlight architectural features, street furniture, landscape...
Surface mounted lighting for cycle path, pedestrian path, stairs
Squares and public places
Colourless anodised machined aluminium body (except 1530RX)
Vandalproof organic glass window
Recess in or attach to walls, bollards, poles or other supports.
APPLICATION
Outdoor lighting
Standard flux : 223 lm
This value is gained from the optimum
output of the LED number, inclusive of
optic, for a cool white LED (6000K)
MOUNTING TYPE
Pavements sides
CARACTERISTICS
Weight : 125 g
Options of luminous effects
20° deflected beam (option)
Non adjustable
Beam with various openings
Transparent flat window
Power supply - Control
Cable length: 1 m
Material
Anodised glazed aluminium
Vandalism-proof, scratchproof,
UV-proof,
polycarbonate window, M2
Mechanical strength - Waterproofness
IK10
60J
Resists impacts up to 60
joules (IK10)
IP68 Tight for extended
immersion
