Circuit breaker DX³6000
Add to favorites
Compare this product
Description
Overview

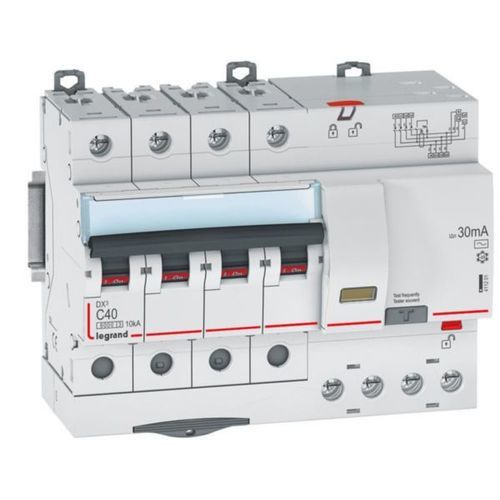

Residual current circuit breaker (monobloc) from the DX³6000 series, reference 411201, intended for professional installations. 4-pole device for 400 V~ networks with a breaking capacity of 10 kA and sensitivity 30 mA (Type AC). Designed for top incoming and top outgoing connections, screw terminals, automatic operation.
Main functions
Characteristics / technical specifications
Residual current circuit breaker (monobloc) from the DX³6000 series, reference 411201, intended for professional installations. 4-pole device for 400 V~ networks with a breaking capacity of 10 kA and sensitivity 30 mA (Type AC). Designed for top incoming and top outgoing connections, screw terminals, automatic operation.
Main functions
- Residual protection (Type AC) 30 mA
- Rated current 40 A
- Breaking capacity 10 kA
- Network compatibility: 4P – 400 V~
- Top incoming / top outgoing (screw connection)
- Monobloc residual current circuit breaker, automatic operation
Characteristics / technical specifications
- Manufacturer reference: 411201
- Brand: Legrand
- Commercial designation (model): DX³6000
- Product type: Monobloc residual current circuit breaker
- Series: DX³6000
- Breaking capacity: 10 kA
- Rated voltage: 400 V~
- Number of poles: 4P
- Rated current: 40 A
- Residual sensitivity: 30 mA
- Detection type: AC
- Incoming/Outgoing: top incoming, top outgoing
- Connection: screw terminals
- Operation: automatic
