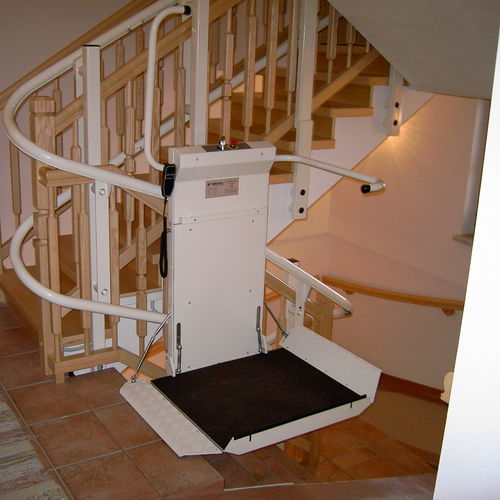

Disabled platform stair lift Omega

inclinedrotatingoutdoor

Space miracle The narrowest platform on the market for maximum passage All-rounder Installation possible for very steep and narrow stairs Persevering Permanent power supply without battery for continuous operation The Omega platform lift is the most versatile lift on the market. The very compact and space saving design allows the unit to be installed in almost any staircase and results in a minimal obstruction for passers-by. Each platformlift perfectly blends into its surrounding thanks to the choice of different colours and materials for rails and the platform. Key features of the Omega: •Slim design for installations on very narrow staircases •Special drive system allows inside and outside curves with small curve radius •Robust outdoor lifts with rail length up to 85 m •Available in any RAL colour •Rail and platform covers can be made from stainless steel •Display for programming of functions, status output and failure detection •Rail inclination up to 67° •Direct power supply without batteries Loading capacity: 225 kg (optional 300 kg) Max. length: 85 m Max. platform sizes: Width: 900 mm Length: 1300 mm Platform gradient: 0 - 67° Speed: 0.06 - 0.15 m/s Noise: Below 60 dB Power supply: 1 x 230 V or 3 x 380 V Surface treatment: Powder coated RAL 9007 or 7035 All RAL colours optional Stainless steel optional Options: Folding seat Chairlift version
