Metal raised access floor structure TYPE 5

high-resistanceindoor

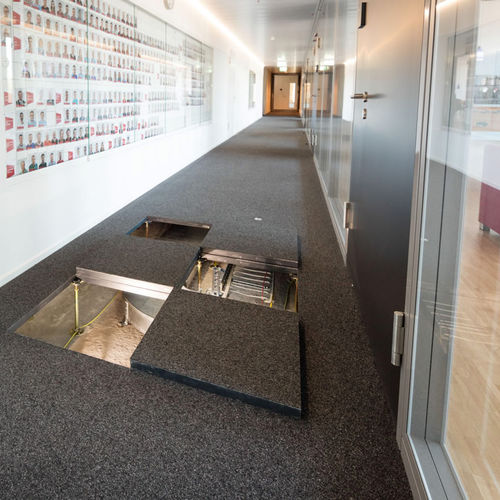

You will find the right substructure for any room with us. We have substructures for low hollow floors with a minimum of building technical installations as well those for highly conductive systems which are ideal for rooms or data centres with very many installations. Benefits Optimal solutions for a variety of installation heights Horizontal stability with high load capacity as needed Raised access flooring can also be retrofitted in rooms with low ceiling heights The substructure Type 5 with individual pedestals is the standard solution for normal installation heights of 200 to 600 mm. This system enables the easy acces to the hollow space anytime and anywhere. The clearance height of the hollow space of approx. 160 to 560 mm offers sufficient space for data cables, electric cables, cabling, heating pipes, cooling pipes, air conditioning channels and the junctions of various cables. We install the supports in the standard grid of the 600 x 600 mm panels. Depending on the construction of the access floor panels, the distributed load varies between 10 and 30 kN/m2.
