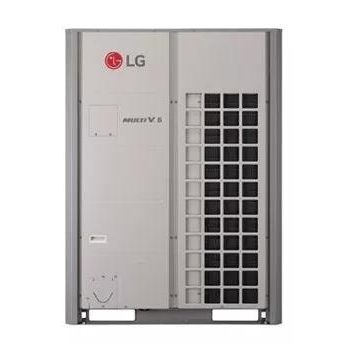

Air source heat pump MULTI V 5

commercialoutdoor

Multi V™ 5 with LGRED° heat technology is a variable-refrigerant-flow outdoor unit that delivers 6 to 42 tons of capacity on a single frame and connects to three-phase 208-230 V, 460-480 V, or 575 V (Canada) power. It keeps spaces comfortable in any climate, with continuous heating down to -22°F and cooling up to 122°F. It runs among the quietest in its class and ships in a smaller, lighter cabinet that lowers both the installation footprint and rigging costs. Together with industry-leading efficiency features, Multi V 5 gives engineers and building owners a flexible, all-in-one solution ready for new construction or retrofit projects. Expansive operating range delivers reliable heating at -22°F and cooling at 122°F LGRED° heat technology maintains full rated capacity at low ambient temperatures The largest tonnage available in a single frame reduces the number of outdoor units needed Compact and light cabinet helps cut structural, crane, and curb costs Smart Load Control anticipates weather shifts and smooths indoor comfort automatically Intelligent Heating function defrosts only when necessary, saving energy and runtime Biomimetic fan blade improves airflow and lowers perceived sound by about 20 percent Quiet operation supports noise-sensitive sites such as schools, hotels, and offices Industry-leading VRF efficiency helps projects meet energy codes and sustainability goals
