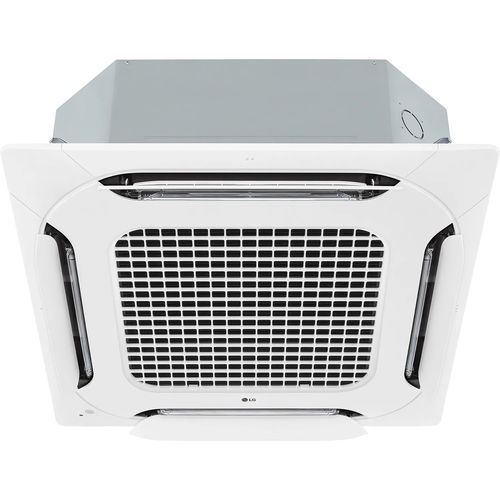

Four-way air-flow ceiling-cassette indoor units, available in 2 x 2 and 3 x 3 sizes. The four-way controlled louvers and fan speed features on these ceiling cassette indoor units allow for even air distribution in large, open spaces.
Overview
The ceiling-cassette indoor units in these duct-free split heat-pump systems provide comfort in large, open spaces. Duct-free installation with an aesthetically pleasing indoor unit design. The four-way controlled louvers and fan speed features on these ceiling cassette indoor units allow for even air distribution. Easy control through the included wireless remote or optional wired wall-mounted controller.
Benefits & Features
Inverter variable-speed compressor on the outdoor unit for energy-saving operation
Many modes included, controlled through wireless remote or wired wall controller: Cooling, Heating, Dehumidifying, Fan
Independent louver control
Internal condensate pump included
Swirl Wind controls the louvers and fan speeds to create a stronger, wider air flow
Jet Cool operates at high fan speeds for 30 minutes to quickly cool down a room
Operates down to 5°F in cooling mode
Allows refrigerant piping lengths up to 164 or 246 feet (depending on the model), and elevation difference of 98 feet
R410A refrigerant
LCN098HV4
Specifications
Chassis 2' x 2'
BTU (Cooling / Heating) 9,000 / 11,000
System Compatibility Single & Multi Zone
LCN128HV4
Specifications
Chassis 2' x 2'
BTU (Cooling / Heating) 11,000 / 14,000
System Compatibility Single & Multi Zone
LCN188HV4
Specifications
Chassis 2' x 2'
BTU (Cooling / Heating) 18,000 / 18,500
System Compatibility Single & Multi Zone
