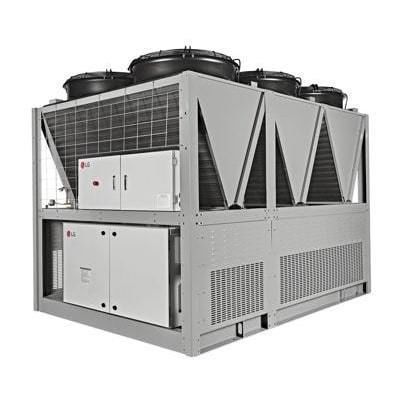

Air-cooled chiller GCAW

floor-mountedfree coolingindustrial

Overview
LG air cooled screw chillers deliver efficient, reliable cooling for commercial and industrial buildings, with scalable capacities approximately from 110 to 500 tons per unit and configuration flexibility to match a range of real-world loads. Optional integrated free cooling capability supports mechanical, hybrid, or full free cooling operation based on outdoor conditions and system configuration to help reduce compressor run time when conditions permit. Advanced components such as a falling film evaporator, microchannel condenser options, and PM motor inverter screw compressors support stable performance and strong part-load efficiency. For service and long-term value, multi compressor and multi circuit architectures, oil reclaim, restart and recovery features, and testing conducted at an AHRI certified test facility help support uptime and confidence.

Models
Model Number | Status
GCAW | Active
GCDW | Active

Technical specifications

• Type: Air-cooled inverter screw chiller for commercial and industrial buildings
• Capacity range: approximately 110 to 500 tons per unit
• Configuration flexibility to match a range of real-world loads
• Optional integrated free cooling: supports mechanical, hybrid, or full free cooling operation
• Evaporator: falling film evaporator (advanced component option)
• Condenser options: microchannel condenser available
• Compressors: PM motor inverter screw compressors for stable performance and strong part-load efficiency
• Architecture: multi-compressor and multi-circuit architectures for serviceability and redundancy
• Service features: oil reclaim, restart and recovery features
• Testing: conducted at an AHRI certified test facility
• Models listed on page: GCAW (Active), GCDW (Active)
• Series indicated in product media: RCAW-V Series Inverter
