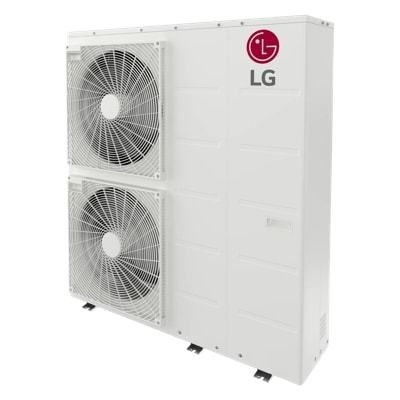

Air/water heat pump AWHP

with integrated hydraulic modulecommercialresidential

Overview
The Air-to-Water Heat Pump (AWHP) Monobloc is a packaged outdoor unit that integrates essential hydronic components within the outdoor enclosure. It provides heating and cooling to buildings through a water-based distribution circuit and requires only water piping to connect to indoor systems, eliminating the need for refrigerant piping between indoor and outdoor equipment.

Hydronic components included

• Plate heat exchanger
• Expansion tank
• Water pump
• Flow sensor
• Pressure sensor
• Air vent valve
• Safety valve

Models
Model Number | BTU (Cooling / Heating) | Refrigerant Type | Status
KPHTC411M | 41,000 | R-32 | Active
KPHTC481M | 48,000 | R-32 | Active
KPHTC551M | 55,000 | R-32 | Active

Technical specifications

• Product class: Water Heating
• Commercial designation: Air-to-Water Heat Pump (AWHP) Monobloc
• Model numbers: KPHTC411M, KPHTC481M, KPHTC551M
• Available capacities (BTU cooling/heating): 41,000; 48,000; 55,000
• Refrigerant type: R-32
• Unit type: Packaged outdoor monobloc with integrated hydronic components
• Connection to indoor spaces: water pipes only (no refrigerant piping required)
