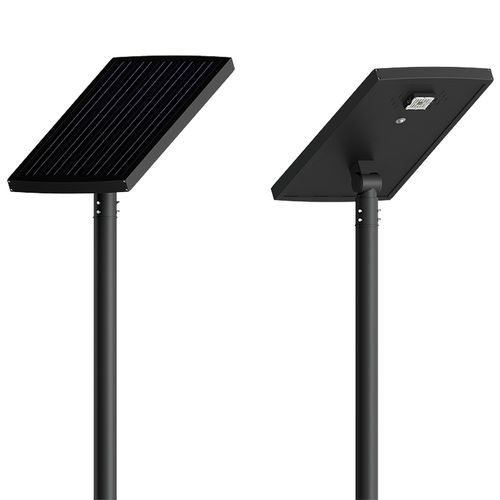

Contemporary eco-conscious family of luminaires. Featuring sleek modern housing, integrated motion and sunlight sensors, solar charging, and programmable dimming.
Luminaire Structure
- Die-cast aluminium end-caps
- Extruded aluminium housing and frame
- Pre-treated before powder coating ensuring high corrosion resistance
- Thermal heat dissipation body
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- Clear glass diffuser
- Standard: 2 Step dimming
- Full automatic electronic protection function against short circuit, overcurrent, overload, overvoltage and high temperature
- Different dimming scenarios are available upon request: 5 Step dimming, 2 Step dimming with motion sensor override, Dusk to Dawn (D2D) and Custom hours
- Remote solar charge controller can be ordered as an accessory
- Luminaires operation time depends on the weather conditions
- Peak Sun-Hour used in the calculations is 3 hours per day
- Without any sun (Autonomy), the battery would last for maximum 2.5 days
- Motion sensor integrated
- Solar module consist of monocrystalline high efficiency cells 5x15W
- Lithium Iron Phosphate (LiFePO4 ) battery 2x16.5Ah 12Vdc
- Maximum 23 hours of operation time (2 Step dimming)
- Solar charger controller system 12V 10A
- Standard: Off-grid, 100% solar, not connected to the utility grid. Utility grid connection is available upon request
