Conceived as the all encompassing workhorse of Litelab's track fixture collection, this line offers the broadest range of lamp selection, accessories, and mounting configurations. Their durable construction based on a theatrical appearance has been a specifier favorite for over 30 years.
Fixture Description

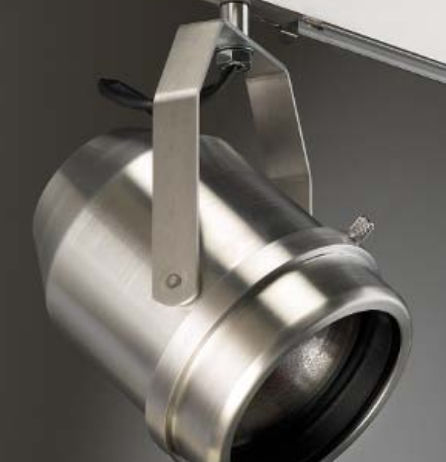

.050” spun aluminum housing with .125”aluminum
bar stock yoke.
Flush Fit adapter with Rotation Lock **
Adapter plugs into Busway with separate electrical
and mechanical connections. Optional thumb wheel
horizontal rotation lock and switch available.
Lenses & Accessories**
Standard clear lenses are available in 55° x 75°,
5° x 55° or 5° x 30° optical patterns. Photo etched
light blocking screens and barndoors also
available.
Accessory Size Code:
w
Accessory Cartridge
Front installation permits separate lens rotation
adjustment for proper lens orientation. This optical
matte black cartridge allows for straight or wall
-
wash snoots, and holds up to three accessories - in
-
cluding a range of lenses, filters and louvers.
Finishes
Available in black, white, brushed aluminum or
custom finish.
