Polycarbonate canopy cycle shelter SQUARE

inclinedsteelmultiplace

Description

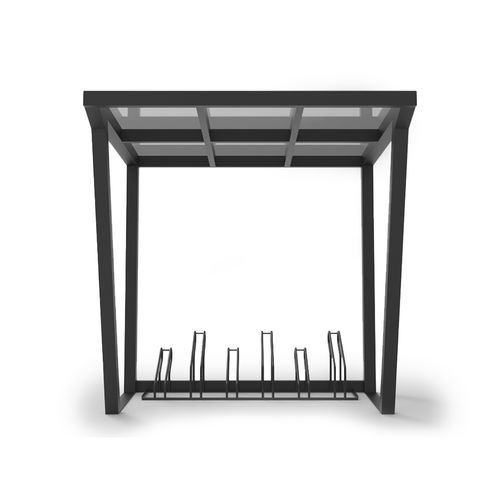

Model Square canopy measuring 2200×2000 mm with a height of 2300 mm, manufactured from 100×100 mm steel box section to ensure structural durability. The roof is designed with an incline to promote rainwater runoff and is stiffened with additional box sections bolted to the main frame to provide enhanced structural stability.

Covering and fastenings
The covering is transparent Lexan UV polycarbonate, 4 mm thick, providing UV protection while maintaining light transmission. The cover is fixed using a perimeter "Z" profile that ensures sealing and a clean visual finish.

Accessories and integrations

• Integrated bicycle rack, fixed directly to the canopy structure.
• Additional box sections bolted to the main frame for stiffening.

Anchoring and installation
The entire structure is supplied with side anchoring plates for fixing to the ground using appropriate anchors sized and provided after structural calculation; anchors are intended for fastening onto concrete plinths.

Technical specifications

• Model: Square
• Dimensions: 2200 × 2000 mm
• Height: 2300 mm
• Structure: 100 × 100 mm steel box section
• Covering: Lexan UV transparent polycarbonate, 4 mm thick
• Cover fastening: perimeter "Z" profile
• Stiffening: additional box sections bolted to the main frame
• Integrated accessories: bicycle rack fixed to the structure
• Anchoring: side plates for anchors on concrete plinths (anchors sized/supplied after structural calculation)
