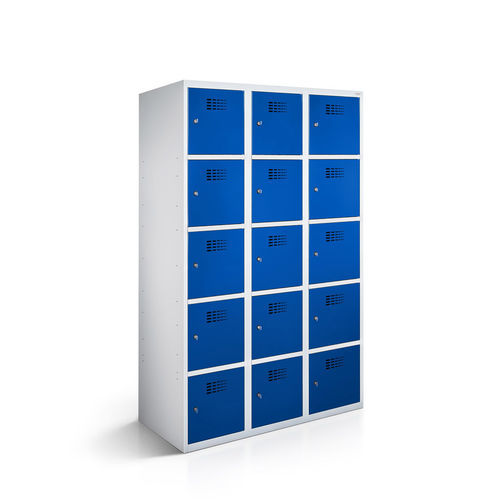

Powder-coated steel set of lockers 2110-030500-0901112_V.497

keycoinRFID

Overview
The locker cabinet provides organised storage for backpacks, bags, jackets and personal items. It is intended for use in schools, leisure centres and industrial or commercial facilities where compact, compartmentalised storage is required.

Construction and design
The cabinet body and doors are made from 0.5 mm powder-coated sheet steel. Rounded edges and flush-fitting doors create a compact, safe design. Ventilation holes in each door ensure air circulation inside compartments; doors open to 110° and include rubber buffers.

Key features

• Corpus and doors in 0.5 mm powder-coated steel sheet
• Rounded edges for injury prevention
• Doors reinforced with integrated profiles, smoothly recessed
• Rubber buffers and strong pivot pins, 110° opening angle

Options / variants
Colour examples

• Body colour: 7016 (Anthracite grey), 7035 (Light grey)
• Door colours (selectable): 1015, 1023, 2004, 3005, 3020, 5010, 5012, 5018, 6011, 6033, 7016, 7032, 7035, 8016, 9005, 9010

Locking systems (examples)

• Cylinder lock with 2 keys
• Padlock hasp
• Coin-operated lock
• Combination lock for fixed users
• Combination lock for rotating users
• PIN code lock
• RFID locking systems (consultation available)

Technical specifications

• Brand: rotstahl GmbH
• Product name: LOCKEEL®
• Product number (SKU): 2110-030500-0901112_V.479
• EAN (GTIN13): 616663266631
• Number of compartments: 15
• Internal compartment dimensions (HxWxD): 32 x 25 x 48 cm
• Compartment tray height: 32 cm
• Compartment tray width: 30 cm
• Pass-through size (HxW): 32 x 21.5 cm
• Material and thickness: Powder-coated steel sheet, 0.5 mm
• Overall dimensions (HxWxD): 180 x 90 x 50 cm
• Weight: 54 kg
• Door opening angle: 110°
