Floor-standing storage cabinet 3332-020110-1001112_V.463

with legswall-mountedcontemporary

Overview

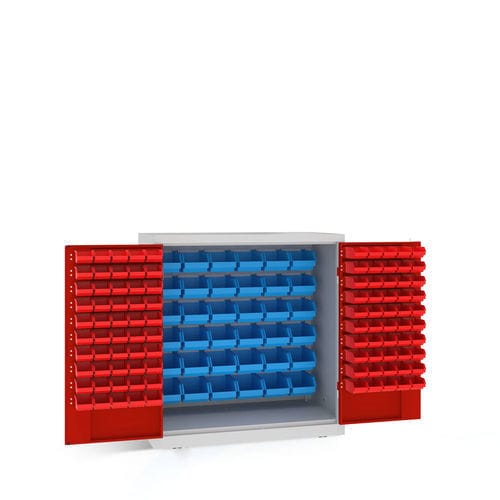

LOCKEEL® workshop cabinet with removable storage boxes for sorting and storing small parts. The cabinet is made from powder-coated steel sheet and contains storage boxes in different sizes and colors: larger blue boxes inside the cabinet and smaller red boxes mounted on the two doors. Height-adjustable feet provide level stability and there are holes in the rear panel for optional wall mounting. A rotary handle with cylinder lock and a 3-point locking system secure the cabinet.

Key features

• Construction with 1.0 mm steel sheet
• Designed for orderly storage of small parts
• Removable storage boxes in multiple sizes
• Secure locking with rotary handle (cylinder lock) and 3-point locking system

Colors and customization
Available in various RAL colors. Custom versions and configurations available on request.

Technical specifications

• Load capacity: 400 kg
• Equipment: 36× large storage boxes, 100× small storage boxes, furniture glides, height-adjustable feet
• Small parts boxes dimensions: 119 × 77 mm (100 pcs) and 224 × 144 mm (36 pcs)
• Door: Hinged doors, opening angle approx. 110°
• Locking: Rotary handle with cylinder lock, 3-point locking system
• Material: Powder-coated steel sheet
• Sheet thickness: 1.0 mm
• Dimensions (H × W × D): 104 cm × 100 cm × 50 cm
• Indicative weight: 67 kg
