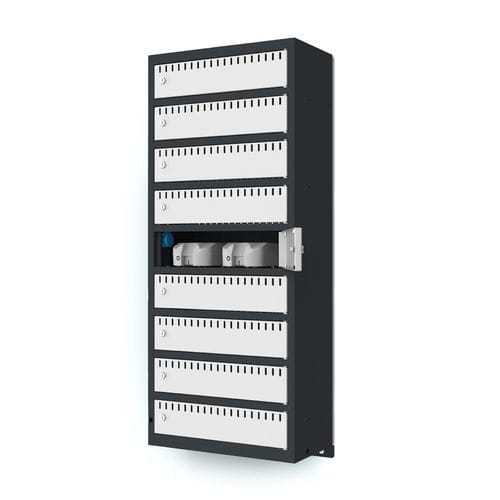

Smartphone charging station 2612-010900-0550011_V.322

for electric bikefor laptopfor mobile phone

Overview
The battery-charging cabinet for wall mounting is designed to securely charge laptops, e-bike batteries and mobile devices in shared or public environments such as bike shelters, shopping centers, offices and conference venues. Each of the 9 lockable compartments is equipped with an earthed Schuko socket (230 V / 16 A) and ventilation openings to reduce overheating risk.

Design and safety
Constructed from powder-coated sheet steel, the cabinet features inset doors on metal pivot pins with rubber buffers for quiet closing. Ventilation perforations in the doors and rear panel ensure effective air circulation. The cabinet is delivered with a wall rail mounting system and standard cylinder locks; alternative locking systems are available as options.

Key features

• Body and doors made of powder-coated sheet steel up to 1.5 mm thickness
• Effective ventilation via perforations in doors and rear panel
• Schuko socket in each compartment (earthed, 230 V / 16 A)
• Rail system included for wall mounting
• Supplied with cylinder locks (other locking options available)

Technical specifications

• Product ref: 2612-010900-0550011_V.598
• Number of compartments: 9
• Compartment width: 54 cm
• Compartment depth: 28 cm
• Compartment height: 14 cm
• Number of charging points: 9
• Socket type: Schuko (Type F, 230 V / 16 A)
• Material: Powder-coated sheet steel
• Door sheet thickness: 1.5 mm
• Body sheet thickness: 0.8 mm
• Overall height: 133 cm
• Overall width: 55 cm
• Overall depth: 30 cm
• Weight: 37 kg
