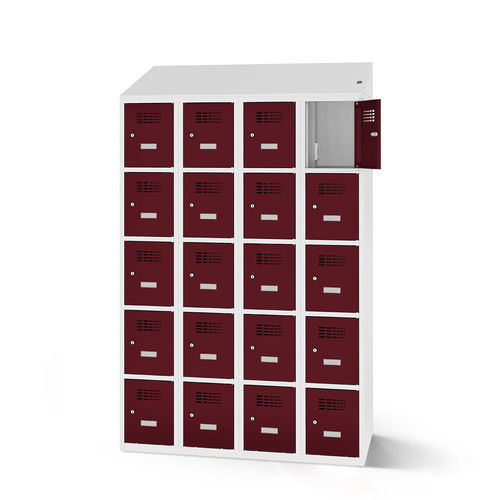

Powder-coated steel set of lockers 2180-040500-1201112_V.437

metalsheet steelstorage

Overview
The LOCKEEL® compartment locker provides practical storage for backpacks, bags, jackets and personal items. Each compartment is fitted with an earthed F-type (Schuko) socket (230 V / 16 A) and two USB ports (USB-A and USB-C) to charge smartphones, tablets and other battery-powered devices. The cabinet body is made of 0.5 mm powder-coated steel sheet with rounded edges and recessed doors. Ventilation holes in the doors ensure air circulation. The electrical unit is located under a sloping roof and includes a thermal fuse, overvoltage protection and an LED power indicator.

Quality features

• Body and doors in 0.5 mm powder-coated steel sheet
• F-type (Schuko) socket (230 V / 16 A) plus USB-A and USB-C in each compartment
• Doors reinforced with integrated profiles, smoothly recessed
• Rubber buffers and robust pivot pins providing 110° opening angle

Product specifications (table)
Number of doors: 20
Compartment height: 32 cm
Compartment width: 30 cm
Internal dimensions (HxWxD): 32 x 25 x 48 cm
Charging bays: 20
Charging ports: F-type (Schuko), USB-A, USB-C
Material: 0.5 mm powder-coated steel sheet
Height: 200 cm
Depth: 50 cm
Width: 120 cm
Weight: 96 kg

Technical specifications

• Compartments: 20
• Internal compartment dimensions (HxWxD): 32 x 25 x 48 cm
• Body material: 0.5 mm powder-coated steel sheet
• Per-compartment power: F-type socket (230 V / 16 A) + USB-A + USB-C
• Electrical safety: thermal fuse, overvoltage protection, LED power indicator
• Door features: reinforced integrated profiles, rubber buffers, 110° pivot pins
• Ventilation: ventilation holes in doors for air circulation
• Overall dimensions (HxWxD): 200 x 120 x 50 cm
• Weight: 96 kg
