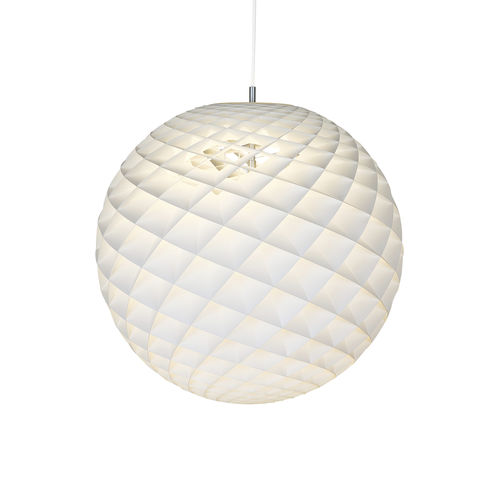

The pendant is a glowing sphere built up of small diamond-shaped cells. Each cell is carefully designed to capture light and to shield the light source from the viewing angles above 45 degrees. Each cell glows. Below 45 degrees, the fields are open to direct light downwards. A small amount of light is also sent upwards to illuminate the ceiling.
Mounting
E27 (Ø450/Ø600): Suspension type: Cable, 2 x 1.0 mm2. E27 (Ø900): Suspension type: 3x1mm² and wire. Canopy: Yes. Cord length: 4m. LED (Ø450/Ø600/900): Suspension type: Cable, 2 x 0.75 mm2 and wire. Canopy contains driver. Cord length: 4m.
Finish
White, matt coated.
Materials
Shade: Cut matt PVCl. Suspension: E27: Matt-chromed brass and die cast acrylic. LED: Matt white.
Sizes and weights
Width x Height x Length (mm)
600 x 608 x 600 Max 5.7 kg
450 x 433 x 450 Max 3.4 kg
900 x 865 x 900 Max 11.5 kg
Class
Ingress protection IP20. Electric shock protection I w. ground. Ø480 and Ø600 E27: II w/o ground.
Light source
Light source 1x100W E27
