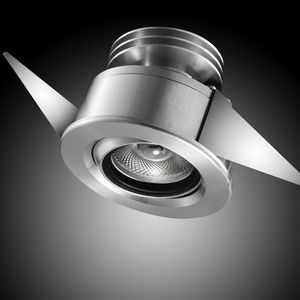

The Insert 10 is a recessed ceiling LED for general lighting or interior accent. Its balanced design and small footprint allows for easy integration into ceilings. Its unobtrusive design allows the choice of several versions: round, square, fixed or adjustable. With a luminous flux in the range of 1,000 lumens, this insert meets a wide variety of requirements. Several models are available depending on the desired light characteristics.
OPTICAL
PMMA acrylic lens, efficiency ~90 %.
Bining Luminous Flux : 300 lumens for 6°, 900 lumens for 18°/28°/34°
Color Temperature: 2700K, 3500K, 4000K (2 to 3 Macadam steps).
Service Range: 70% of nominal flux after 50000 hours.
Color rendering index: CRI 90
ELECTRICAL
3W to 10W Power LED.
Constant power supply current from 700mA to 1.4A
Supply connection : polarised output wires.
Electrical load up to 10W max, excluding supply.
Electrical Classification : Class III SELV device.
