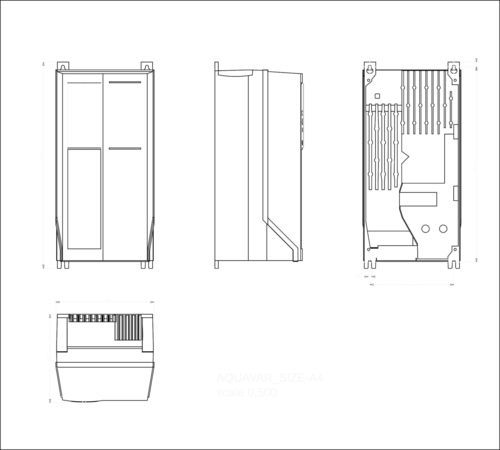

Aquavar IPC series: CAD and BIM deliverables for Aquavar IPC drive/controller units available in multiple power ratings and frame sizes. Product listings include main technical attributes, available CAD/BIM formats and previews to support specification and integration.

Available models

• AQA 3.0011-CB000 | 1.1 kW | IP66 | 208–240 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0015-CB000 | 1.5 kW | IP66 | 208–240 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0022-CB000 | 2.2 kW | IP66 | 208–240 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0030-CB000 | 3 kW | IP66 | 208–240 V | A5 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0040-CB000 | 4 kW | IP66 | 208–240 V | A5 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0055-CB000 | 5.5 kW | IP66 | 208–240 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0075-CB000 | 7.5 kW | IP66 | 208–240 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0110-CB000 | 11 kW | IP66 | 208–240 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0150-CB000 | 15 kW | IP66 | 208–240 V | B2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0185-CB000 | 18.5 kW | IP66 | 208–240 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0220-CB000 | 22 kW | IP66 | 208–240 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0300-CB000 | 30 kW | IP66 | 208–240 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0370-CB000 | 37 kW | IP66 | 208–240 V | C2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 3.0450-CB000 | 45 kW | IP66 | 208–240 V | C2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0011-CB000 | 1.1 kW | IP66 | 380–480 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0015-CB000 | 1.5 kW | IP66 | 380–480 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0022-CB000 | 2.2 kW | IP66 | 380–480 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0030-CB000 | 3 kW | IP66 | 380–480 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0040-CB000 | 4 kW | IP66 | 380–480 V | A4 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0055-CB000 | 5.5 kW | IP66 | 380–480 V | A5 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0075-CB000 | 7.5 kW | IP66 | 380–480 V | A5 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0110-CB000 | 11 kW | IP66 | 380–480 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0150-CB000 | 15 kW | IP66 | 380–480 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0185-CB000 | 18.5 kW | IP66 | 380–480 V | B1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0220-CB000 | 22 kW | IP66 | 380–480 V | B2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0300-CB000 | 30 kW | IP66 | 380–480 V | B2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0370-CB000 | 37 kW | IP66 | 380–480 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0450-CB000 | 45 kW | IP66 | 380–480 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0550-CB000 | 55 kW | IP66 | 380–480 V | C1 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0750-CB000 | 75 kW | IP66 | 380–480 V | C2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview
• AQA 4.0900-CB000 | 90 kW | IP66 | 380–480 V | C2 | 2D (.dxf); 3D (.stp); BIM (Revit .rfa); BIM (IFC .ifc) | 2D preview; 3D preview

Document types available (per listing)

• 2D CAD (.dxf)
• 3D CAD (.stp)
• BIM (Revit .rfa)
• BIM (IFC .ifc)
• 2D preview (PNG)
• 3D preview (web 3D)

Notes
All listed variants have IP66 protection. Supply voltage groups: 208–240 V for 3.xx models and 380–480 V for 4.xx models. Frame sizes vary (A4, A5, B1, B2, C1, C2) according to power rating.

Technical specifications

• Series: Aquavar IPC
• IP degree: IP66 (all listed models)
• Power range: 1.1 kW to 90 kW
• Supply voltages: 208–240 V (3.xx models) and 380–480 V (4.xx models)
• Frame sizes: A4, A5, B1, B2, C1, C2
• Available deliverables: 2D DXF, 3D STEP, BIM (RFA, IFC), 2D PNG preview, 3D web preview
