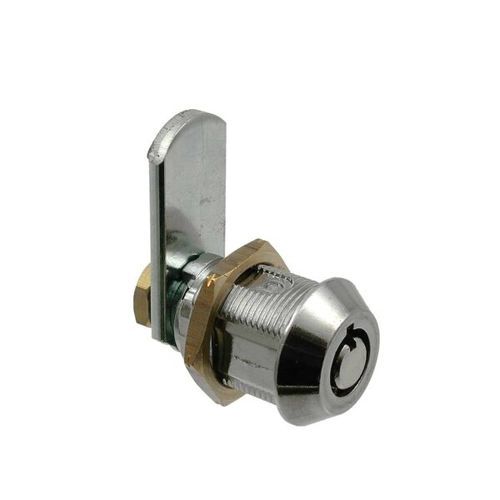

A range of 12mm to 30mm Radial Pin Tumbler Camlocks in Bright Chrome. This lock has an optional 10 pin mechanism and anti-drill feature on request making it ideal for asset security applications or anywhere high security is required.
STANDARD FEATURES
Standard movements: 1 – 20 (see RPT Lock Movements)
Lock combinations: 2,000-10,000
Standard finish: Bright chrome
Fixing hole shape: Double D
Fixing hole size 22.2mm x 19.2mm: 4801 only
10 Pin mechanism: Available on request
Anti-drill feature: Available on request
4303-0100: Master available on request
Dimension ‘X’: Body Length (see Lock Options above)
Dimension ‘P’: See Lock Options above
Max panel thickness: See Lock Options above and state when ordering
Dimension ‘B’ specification: See Cams
