Electric curtain track PALLADIOM DRAPERY

motorizedwall-mountedfor drapes

Overview

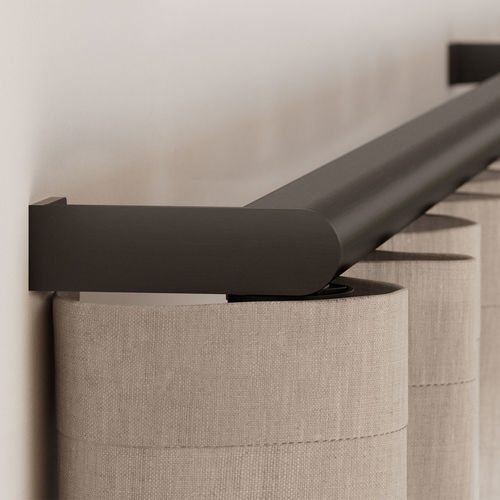

Palladiom Drapery in pinch pleat style provides refined motorized control for custom-fabricated draperies. The D105 drive supports fabric panels up to 38.5 kg (85 lbs) and systems up to 9.1 m (30 ft) with splicing. A slender unibody aluminium track conceals carriers, drive and reinforcement within a rounded machined tube to minimise visible diameter while resisting deflection. Solid machined aluminium brackets are hand-finished in multiple finishes to integrate the hardware as an architectural detail. Drapery pins loop through carriers on the track for pinch pleat installation.

Highlights

• Supports pinch pleat draperies up to 9.1 m (30 ft) with splicing; D105 drive supports fabric panels up to 38.5 kg (85 lbs).
• Pinch pleat produces classic pleated header; pins on the drapery loop through track carriers when installed.
• Straight track available in left, right, center and tandem draw configurations; three end treatments: End Cap, End Bracket and Finial.
• Wall-mount installation positions the exposed track as an architectural element; slender unibody profile minimises visible diameter.
• Tandem configurations pair two tracks with dedicated drives for longer center-draw systems and heavier draperies with synchronized movement.
• Compatible with nearly any custom-fabricated drapery material; five hand-finished aluminium finishes available.
• Integrates with HomeWorks QSX, RadioRA 3, RA2 Select and Caséta (Smart Hub PRO) systems, or operates with standalone wired or wireless controls.
• Backed by an Eight Year Limited Warranty.

General specifications
Overall dimensions: Single track length up to 3.6 m (12 ft) without splice; up to 9.1 m (30 ft) with splices.
Power options: 35 V low-voltage wiring.
Control communication: QS wired and wireless protocols.
Weight capacity: 38.5 kg (85 lbs) max per fabric panel. Blocking required for mounting (see spec sheet for details).

Performance & features

• Master carrier speed: 127 mm/sec (5 in/sec).
• Precision control for smooth start, travel and stop.
• Synchronized movement in tandem configurations for coordinated operation of paired or heavier tracks.

Design specifications
Fabric options: Compatible with nearly any custom-fabricated drapery material for design flexibility.
Finishes: Pure White, Black Anodized, Clear Anodized, Bronze Anodized and Satin Nickel.

Mounting & installation highlights

• EDU can be installed in slim or original orientation; slim orientation recommended for ripple fold to reduce first ripple size around EDU.
• All Palladiom installations require blocking or suitable structural backing; installer must select appropriate fasteners for the mounting surface.

Compatibility & integration
Integrates with HomeWorks QSX, RadioRA 3, RA2 Select and Caséta (Smart Hub PRO) systems for full automation; also operable with standalone wired or wireless controls.

Warranty & environmental
Warranty: Eight Year Limited Warranty.
Environmental rating: Indoor use only. Operating temperature up to 40°C. Relative humidity < 90% non‑condensing.

Technical specifications

• Model / Series: Palladiom Drapery.
• Style: Pinch Pleat (alternative Ripple Fold available).
• Track types: Straight. Draw configurations: left, right, center, tandem.
• Drive types: D105 Drive (this SKU); D175 Drive available as alternative.
• Maximum single-track length without splice: 3.6 m (12 ft); with splices: up to 9.1 m (30 ft).
• Maximum fabric panel weight (D105): 38.5 kg (85 lbs).
• Power: 35 V low-voltage wiring.
• Control communication: QS wired and wireless protocols.
• Master carrier speed: 127 mm/sec (5 in/sec).
• Available finishes: Pure White, Black Anodized, Clear Anodized, Bronze Anodized, Satin Nickel.
• Mounting: Wall-mount; blocking required for secure installation.
• Warranty: 8-year limited warranty.
