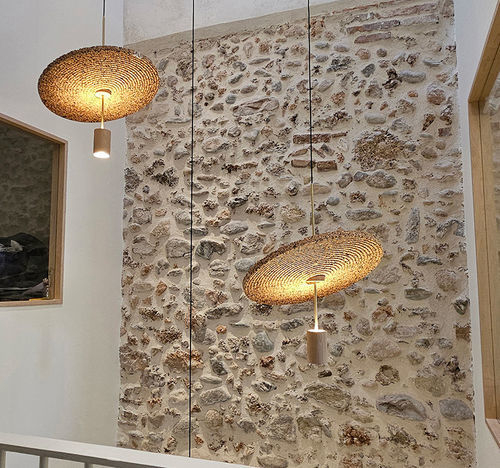

Floating lamp CALMA

corkcontemporarycorded

Product overview
Adaptability and acoustic comfort are the main outcomes of the Calma lamp. Produced with a combination of locally sourced sustainable materials, Calma brings together technology and natural cork. The elegant floating boards are sculpted in a zero-waste process, with residues reprocessed back into cork. The adjustable cork boards create a play of light and shadow across the material waves and enhance sound absorption to support a refined, relaxing indoor environment.

Materials and finishes
Structure in acoustic cork, beech wood and satin brass.

Electrical characteristics

• 2 × LED 6.3W
• 665–836 lm
• 2700 K
• CRI > 80
• Ambient temperature: -20°C to +40°C
• LED module lifetime: L70-B50 > 66,000 h
• Luminous flux maintenance factor: 0.98 @ 11,000 h / tc 85°C (EPREL: 0.96 @ 3,000 h / tc 85°C)
• Not dimmable

General measures
Total height: 60 cm
Total width: 48 cm
Spotlight diameter: 6 cm

Certifications and use
Class I electrical insulation | IP20 | Lamp for indoor use

3D files
3D files available (SketchUp / BIM library) for project use.

Downloads
Downloadable product data sheet (PDF), assembly instructions (PDF) and warranty & safety instructions (PDF) are available for this model.

Technical specifications

• Model name: Calma
• Brand / Designer: BRUNO DE AVILA
• Materials: Acoustic cork, beech wood, satin brass
• Acoustic absorption: 0.51 – 0.87 α | αw = 0.50 (H) | Class D (Laboratório Nacional de Engenharia Civil – Lisboa, Portugal)
• Light source: 2 × LED 6.3 W (non-dimmable)
• Luminous flux: 665–836 lm
• Colour temperature: 2700 K
• CRI: >80
• Operating ambient temperature: -20°C to +40°C
• LED lifetime: L70-B50 > 66,000 h
• Luminous flux maintenance factor: 0.98 @ 11,000 h / tc 85°C (EPREL: 0.96 @ 3,000 h / tc 85°C)
• Dimensions: H 60 cm × W 48 cm; Spotlight Ø 6 cm
• Protection / use: IP20, indoor use, Class I
