Modern wall light SUTTON A ARCO

indooraluminumconical

Product description

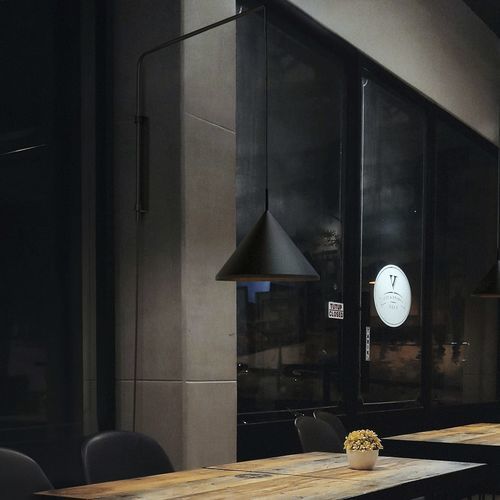

The aluminum shade with a cone-shaped design is the central element of the Sutton collection. Available in three diameters (220, 350 and 500 mm), all shades share the same upper support that stabilizes the lamp horizontally. The collection is produced in epoxy-lacquered finishes and is designed for an LED bulb. The light metal shade is elegantly suspended to bring character to interior environments.

Materials and finishes

• Black textured RAL 9005
• Off-white textured RAL 9002

Electrical characteristics

• E-27 LED 12W (bulb not included) — Sutton a arco L
• E-14 LED 8W spherical (bulb not included) — Sutton a arco S

General measures
Sutton arco L
Total height: 53 cm
Total length: 104 cm

Sutton arco S
Total height: 42 cm
Total length: 44 cm

Certifications / Use

• IP20
• Class 1
• Indoor use

Characteristics / Technical specifications

• Type: Wall lamp
• Collection / Model name: Sutton a arco
• Designer: XAVIER SOLÉ
• Shade material & shape: Aluminum, cone-shaped
• Available shade diameters: 220 mm, 350 mm, 500 mm
• Finishes: Epoxy lacquered finishes (examples: Black textured RAL 9005; Off-white textured RAL 9002)
• Light source: LED bulb (not included)
• Lampholder / recommended lamps: E-27 LED 12W (Sutton a arco L); E-14 LED 8W spherical (Sutton a arco S)
• Sutton arco L dimensions: Total height 53 cm; Total length 104 cm
• Sutton arco S dimensions: Total height 42 cm; Total length 44 cm
• Ingress protection: IP20
• Application: Indoor use
• Compliance: CE (as indicated)
