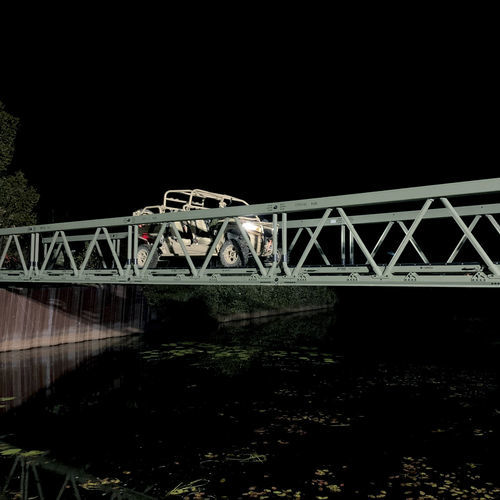

Aluminum bridge

archmodularmobile

Our adjustable-length bridge uses our patented weld-free MakeABridge® system for ultra-fast installation without heavy machinery. Bridge in a box Compact and mobile light vehicle tactical bridge, with choice of color Ships in a standard container that can be transported by truck, boat, or helicopter Container designed to protect components during transport and arranged for easy access once at destination Includes expandable custom trailer to streamline transport of components using a utility task vehicle Lightning-fast assembly Lighter and easier to install than competitive steel products Requires a dozen people with basic tools 6-module bridge assembles in 4 hours by 13 soldiers Horizontal launching system enables installation without heavy machinery Step-by-step assembly and installation instructions from site preparation to bridge launching Structurally strong Designed specifically for NATO side-by-side UTV Vehicular load of 5,000 lb (2,268 kg) – 3 axles High-strength alloy construction using 6005A-T6, 6061-T6, AA357-T6 Suited to extreme cold, aluminum does not crack at low temperatures Modular design The LVTB-2418 modular bridge consists of up to 6 sections, allowing the length to be adjusted to the size of the obstacle to cross. Each assembled section be easily transported by a NATO vehicle using the included expandable custom trailer.
