UV-resistant shade sail SOLARIA +PLUS

custom-madewind-resistantwaterproof

Product description

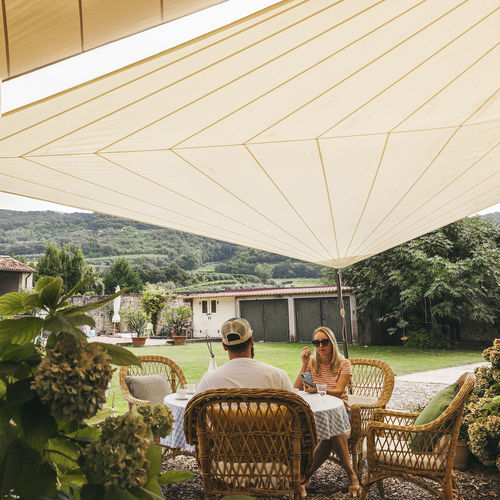

Solaria +Plus Waterproof is a radial-cut shade sail with narrower panels and Arroww+ corner reinforcements. This 100% waterproof version uses Purishade® technical fabric to provide UV protection and shelter from rain and wind.

Performance and use
The +Plus structure doubles the number of panels compared with the standard Solaria, improving tension distribution and performance in gusty conditions. Recommended for gardens, terraces, rooftops, patios and commercial outdoor areas.

Main highlights

• Tighter radial cut: improved tension distribution and wind resistance up to 49 mph (≈80 km/h)
• Zigzag triple stitch seams: added elasticity and high tensile endurance
• Arroww+ reinforcements: multi-layer corner reinforcement for even load distribution and refined shadow play
• Adjustable perimeter straps: manual calibration of surface tension to avoid water pooling and increase stability
• Purishade® fabric: 100% waterproof technical fabric engineered for UV resistance and adverse weather

Advantages of the radial design and construction

• Radial-cut geometry propagates forces across the surface for more uniform tension and reduced local stress
• Doubling the number of panels (narrower panels) increases resistance under wind loads
• Sealed seams combined with technical zigzag triple stitching reduce water ingress and extend fabric life

Included & accessory information
The sail is supplied with sewn reinforcements, adjustable straps and a cotton sail bag for storage. Poles, anchoring plates, clips/carabiners and ropes are not included. Upgrade kits and accessory bundles (furler kit, rope cleat, etc.) are available separately.

Technical specifications

• Model: Solaria +Plus Waterproof
• Fabric: Purishade® (100% waterproof polypropylene/olefin)
• Fabric weight: Purishade® 270 g/m²
• Cut: Digital radial cut with tighter panels for improved performance
• Seams: Zigzag triple stitch with sealed seams
• Reinforcements: Arroww+ corner reinforcements (multi-layer, 9 fabric layers)
• Plates: Marine-grade stainless steel AISI 316 reinforcement plates
• Perimeter straps: Adjustable grooved perimeter strap (rated load ~800 kg / ~1,763.7 lbs)
• Wind resistance: Up to 49 mph (≈80 km/h) depending on anchoring and installation
• Maximum area: Up to 42 m² (≈452 ft²)
• Available sizes: Standard sizes and custom-made (tailor-made available)
• Warranty: 4 years
• Packaging and storage: Cotton sail bag (suitable for sail storage)
• Not included: Poles, anchoring plates, clips/carabiners, ropes
