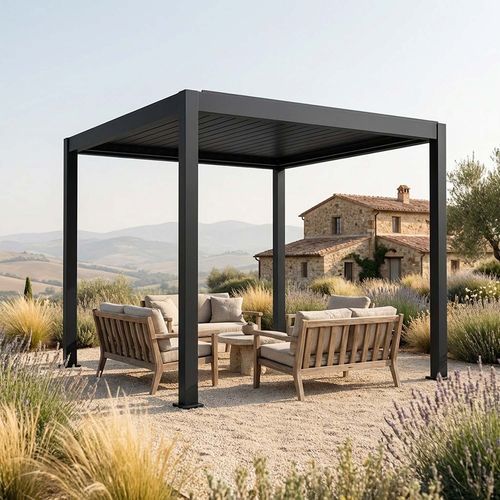

Anchored pergola LYRA T6

self-supportingpainted aluminumaluminium

Overview
Lyra T6 is a bioclimatic pergola with adjustable motorised louvres (0°–100°) that lock securely in any position. Its structure is built from T6 ArmorAlloy™ (aerospace-grade 6063-T6 aluminium) and has been independently certified by INTERTEK to EN 13659. Designed for year-round use, Lyra T6 is delivered as a complete system with motors, lighting and sensors included.

Key features included in the price

• Solar rain sensor (solar battery, ~6 months autonomy, 80 m wireless range, corrosion-resistant full-metal housing)
• Integrated dual-colour perimeter LED lighting (3000K + 6000K, CRI 90)
• Submersible IP67 DC24V motor (SealDrive™) with certified failure rate <0.025%
• 868 MHz remote control and Tuya Smart app compatibility

Certifications & Structural performance

• INTERTEK EN 13659 tested: wind up to 143 km/h (test), snow up to 160 kg/m² (test)
• Operational limits specified: 133 km/h in operation and 110 kg/m² recommended snow load in service

Six exclusive technologies

• T6 ArmorAlloy™: heat-treated 6063-T6 aluminium (higher tensile strength than previous generation)
• DualChannel™ post: separate internal channels for electrical wiring and water drainage
• GripBolt™ M8: M8 bolt-lock system designed to remain tightened during product life (low maintenance)
• SealDrive™ IP67: motor certified for immersion (DC24V/30W, IP67)
• DuoGlow™ CRI 90: integrated bi-colour perimeter LED (3000K evening / 6000K functional) with CRI 90
• DropSense™ Solar: solar-powered rain detector that closes louvres within ~20 seconds on first drops

What is delivered with the pergola

• Complete T6 aluminium structure (poles, beams, louvres) with UV-resistant powder coating
• Pre-installed IP67 motors (DC24V/30W) and YZ21008 transformer (IP65) housed in the pole
• Integrated bi-colour perimeter LED strips (IP67)
• Solar rain sensor factory-paired
• Pre-connected plug & play cables and connectors
• 4 steel base plates (8 mm) for anchoring (6 plates for the largest formats)
• Installation kit with M8 bolt-lock fasteners and illustrated instructions; video guides available

Use cases
Terraces, private gardens, poolside shading, car cover, restaurant outdoor areas and commercial outdoor spaces — the product is suitable for residential and commercial installations where controlled light, shade and ventilation are required.

Caractéristiques / spécifications techniques

• Model: Lyra T6
• Structure material: Aluminium 6063-T6 (T6 ArmorAlloy™)
• Available sizes: 3×3 m, 3×4 m, 3×6 m, 4×4 m, 4×6 m (9–24 m²)
• Powder-coat colours: Matt Grey (RAL7016), Matt White (RAL9016)
• Louvre rotation: 0° – 100°
• Operational wind resistance: 133 km/h; tested wind resistance: 143 km/h (INTERTEK)
• Operational snow load: 110 kg/m²; tested snow load: 160 kg/m² (INTERTEK)
• Pole profile: 120×120×2 mm double-channel
• Beam profile: 160×95×1.7 mm with integrated gutter
• Louvre profile: 160×33×1.4 mm (max length 3 m), double layer
• Motor: DC24V / 30W, IP67 (SealDrive™), stroke 165 mm / force 800 N
• Transformer: YZ21008-01A, IP65 (housed in pole)
• Perimeter LED: IP67, 2×2.7 W/m, selectable 3000K / 6000K, CRI 90
• Remote: 868.35 MHz (open field range >200 m; typical indoor/obstructed range up to ~30 m)
• App: Tuya Smart (Wi‑Fi + Bluetooth); compatible with Google Home and Alexa (HomeKit via optional bridge)
• Solar rain sensor: model YZ61001-01SR-FSK, solar-powered, autonomy ~6 months, wireless range 80 m, metal anti-corrosion housing
• Power supply requirement: 100–240 VAC 50/60 Hz (single mains connection)
• Package weight (structure): approx. 150–250 kg depending on size
• Warranty: 10 years on structure; 3 years on motor
