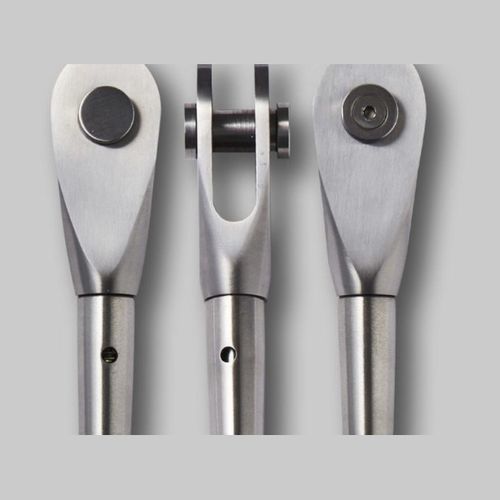

Railing compression strut S460

for metal structuresfor tensile structuresstainless steel

Macalloy S460 is an austenitic stainless steel system, selected from high strength stainless steel to provide the optimum balance of strength, durability and appearance. Austenitic stainless steel has excellent charpy v notch impact properties. Macalloy S460 bar has the following mechanical properties: Minimum Yield Stress 460 N/mm2 Minimum Breaking Stress 610 N/mm2 Minimum Elongation 15% Minimum charpy Impact Value 27J @-20°C Nominal Young’s Modulus 190 kN/mm2 The system comes as standard in diameters M10 to M76. Bars are available in standard lengths of 6m. Longer lengths are available by request. Adjustments within each fork or spade are: M10 to M56: +/- 1/2 thread diameter M64 to M100: +/-25mm Turnbuckles give additional adjustments of: M10 to M24: +/-25mm M30 to M100: +/-50mm Stainless Finish All components of the Macalloy S460 bar system are supplied, as standard, with a Grit 220 (N3) polished finish. On request, Macalloy can supply higher quality finishes (electro polished. glass bead finish etc). Please discuss your requirements with our sales team.
