Active chilled beam WAAB SERIES

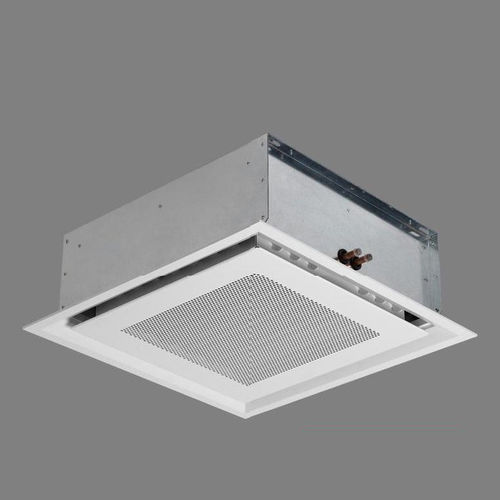

The WAAB 4-WAY chilled beam is an air/water induction terminal unit that simultaneously provides the supply, thermal treatment and diffusion of supply air, to set internal conditions at the desired comfort levels. Chilled beams take advantage of the excellent thermal properties of water to guarantee optimal comfort levels, with minimal power consumption. The main heat-transferring component in the WAAB 4-WAY chilled beam is a battery, formed by copper tubing and aluminium fins. It also incorporates air ducts and a plenum for supplying the ventilation air, which has been pre-treated in a central air conditioning unit. The WAAB 4-WAY chilled beam can be supplied with connections on the side or on the top for supply air. The unit can be adapted to modular ceilings measuring 600x600, 625x625 and 675x675 for T24 and T15 profiles. Thanks to its reduced size, it can also be installed in low-hanging false ceilings. CLASSIFICATION WAAB 4-WAY Beam for supply air. …/LN/ Nominal Length (600 or 1200). …/2T/ 2-tube battery …/4T/ 4-tube battery. …/LD/ Right side connection. …/LI/ Left side connection. …/SD/ Right top connection. …/SI/ Left side connection. …/T15/ Support for dropped panel, 15-mm profile modular ceilings. …/T24/ Support for dropped panel, 24-mm profile modular ceilings. …/KS/ Small discharge nozzles. …/KM/ Medium discharge nozzles. …/KL/ Large discharge nozzles. …/FC/ Front panel with circular perforations. …/FQ/ Front panel with square perforations …/FL/ Front panel with lineal aluminium grill. …/TY/ Type ACCESSORIES DEF Deflecting fins MOUNTING (D) Angle bracket for suspending from ceiling
