Aluminum ventilation grill LMT-MISS

linearheating

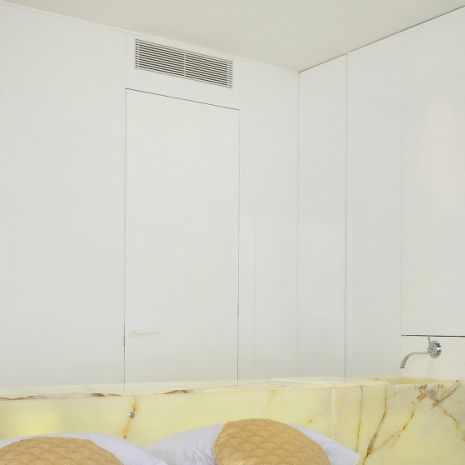

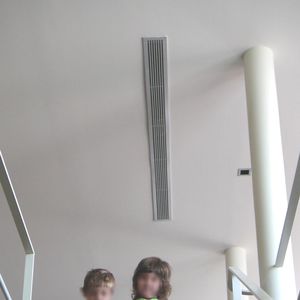

The LMT-MISS series grilles are designed to be used in airconditioning, ventilation and heating. The distance between the blades and the thickness of them give great strength and an aesthetic appearance which makes them ideal for living rooms and locations where decorative factors are of prime importance. They are suitable for supply and extraction in particular or for use in air curtains. They can be placed in ceilings and walls. CLASSIFICATION LMT-MISS Grille with end borders and fixed bars at 0º. Suitable for lengths ≤ 2 m. LMT-MISS-15 Grille LMT with fixed bars at 15º. …-DD LMT grille with individually adjustable rear blades, parallels to the shortest side. …-ARI Grille with an end border on the left side, required to form lines > 2 m. …-ARD Grille with an end border on the right side, required to form lines > 2 m. …-INT Grille without end borders, required to form lines > 4 m. MATERIAL Extruded aluminium grille. All the grilles are provided with seal on the back of the frame in order that the perimeter in contact with walls, ACCESSORIES SP Opposed blades volume damper from electro-zinc steel, in black colour. The damper is operated by an easily accessible key inside the grille. The damper is held in place by “S” springs. A90/LMT-MISS Inactive grille without end borders, making a 90º angle. PMIS Plenum box with circular connection. FIXING SYSTEMS (S) Clips. It requires mounting frame CSS. (O) Hidden screw. It requires mounting frame CSS. FINISHES AA Matt silver anodised. M9016 Painted in white similar to RAL 9016. RAL… Painted in other RAL. RAL…LMT-DD Painted in other RAL. Rear blades in black colour.
