Corrosion-resistant collector FRONT

Product overview

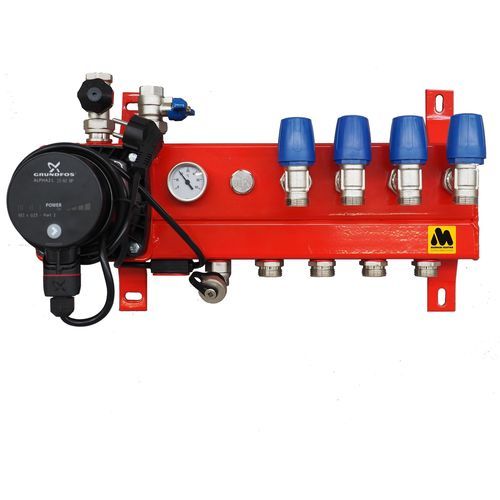

The MAGNUM Front Steel control unit is a compact heating manifold with a galvanised, epoxy-coated steel body. Supplied as standard with a Grundfos A-Label pump and top primary connection. The pump operates at constant pressure and adapts when zones are closed via actuators. In hydraulically active configuration with the mixing valve closed, the manifold is hydraulically neutral.

Models (Art.nr. | Description | Dimensions)
Art.nr. | Description | Dimensions
W41001 | MAGNUM Front Steel 1 Group incl. A-Label pump | 325 x 235 x 185 mm
W41002 | MAGNUM Front Steel 2 Groups incl. A-Label pump | 325 x 235 x 185 mm
W41003 | MAGNUM Front Steel 3 Groups incl. A-Label pump | 375 x 235 x 185 mm
W41004 | MAGNUM Front Steel 4 Groups incl. A-Label pump | 425 x 235 x 185 mm
W41005 | MAGNUM Front Steel 5 Groups incl. A-Label pump | 475 x 235 x 185 mm
W41006 | MAGNUM Front Steel 6 Groups incl. A-Label pump | 525 x 235 x 185 mm
W41007 | MAGNUM Front Steel 7 Groups incl. A-Label pump | 575 x 235 x 185 mm
W41008 | MAGNUM Front Steel 8 Groups incl. A-Label pump | 625 x 235 x 185 mm
W41009 | MAGNUM Front Steel 9 Groups incl. A-Label pump | 675 x 235 x 185 mm
W41010 | MAGNUM Front Steel 10 Groups incl. A-Label pump | 725 x 235 x 185 mm
W41011 | MAGNUM Front Steel 11 Groups incl. A-Label pump | 775 x 235 x 185 mm
W41012 | MAGNUM Front Steel 12 Groups incl. A-Label pump | 825 x 235 x 185 mm
W41013 | MAGNUM Front Steel 13 Groups incl. A-Label pump | 875 x 235 x 185 mm
W41014 | MAGNUM Front Steel 14 Groups incl. A-Label pump | 925 x 235 x 185 mm
W41015 | MAGNUM Front Steel 15 Groups incl. A-Label pump | 975 x 235 x 185 mm

Application
Central heating boiler | V
Heat pump | X
Solar heat (with buffer tank) | V
Pellet stove | V
District heating | X (on request)

Specifications (feature | available)
Valve on inlet | V
Thermostat on inlet | V
Pump | V
Flow meter | X
Thermometer | V
Pressure gauge | X
Air vent | V
Valve on return | V
RTL valve on return | X
In control valve mixing quantity | V
Stop valve between supply and return | X
Inspection | CE

Technical details

• Body made of galvanised and epoxy coated steel
• Equipped with thermometer, air vent and maximum safety device
• Supplied standard with energy-efficient Grundfos A-Label pump (constant pressure)
• Thermostatic group valves M30 x 1.5 suitable for MAGNUM actuators
• Group connections suitable for 3/4" Eurocones
• Primary connection 1/2" (from 8 groups 3/4")
• Supplied with mounting material as standard
• Thermostatically prepared valve and thermostat knob with immersion cap
• Bimetal immersion thermometer included
• Air vent 1/2" and 1/2" ball valve (2-part, blue)
• Valve insert LTV manifold

Package content

• Press report
• Installation instructions
• Warranty certificate
• MAGNUM Front Steel manifold

Warranty
MAGNUM Basic Steel: 5 years for the body, 2 years for fittings.

Characteristics / technical specifications

• Body material: galvanised and epoxy coated steel
• Standard pump: Grundfos A-Label, constant pressure
• Thermometer: bimetal immersion thermometer included
• Air vent: 1/2"
• Group connections: suitable for 3/4" Eurocones
• Thermostatic group valves: M30 x 1.5 (suitable for MAGNUM actuators)
• Primary connection: 1/2" (from 8 groups 3/4")
• Includes mounting material and safety device
• Available in 1 to 15 group configurations (see models)
