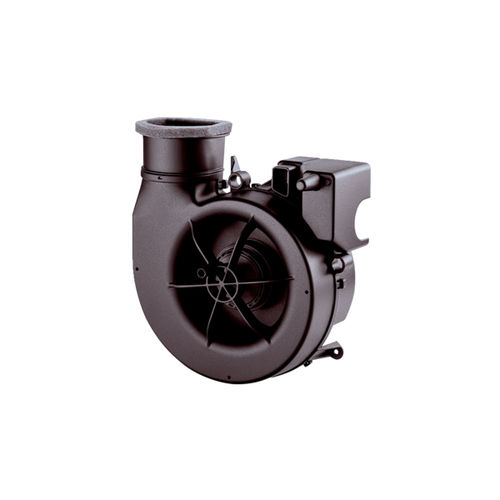

Exhaust fan ER EC

wall-mountrecessedresidential

Article number: 0084.0360 Manufacturer: MAICO Application examples: Bathroom, Kitchen, Multiple family unit, Day room, Dining room ER EC - short description ER EC fan insert for ER GH recessed-mounted housing, air volume of 30 m³/h / 60 m³/h ER EC - Product description Features 2-level fan for installing in ER GH recess-mounted housing. Air volume of 30 m³/h, 60 m³/h (20 / 40 / 100 m³/h also possible if combined with an intelligent cover). Start delay 60 s. Overrun time 15 min. For single room air extraction using a single fan. With exhaust adapter for air outlet at side and rear. Electrical plug connection for quick fan installation in the housing. Trouble-free filter change without using tools. It is possible to rotate the cover by ± 5°, to compensate for housings which have been fitted at an angle. The housing has easy to install snap-in fan fittings. All MAICO ER units have an IP X5 degree of protection and can be installed in area 1 in accordance with DIN VDE 0100-701, even with water jets. For details see planning instructions. Protection class II. The steep characteristic curve shows the high pressure capacity of the ER EC fan. Robust energy-saving EC motor. Motor with thermal overload protection. Maintenance-free, with enclosed ball bearings on both sides. Air flow volume 20 m³/h / 30 m³/h / 40 m³/h / 60 m³/h / 100 m³/h (Levels can be set in a variable manner depending on cover variant. ER-A: Level 1 = 30 m³/h, level 2 = 60 m³/h. ER-AK/ER-AB: Level 1 and level 2 = 20/30/40/60/100 m³/h can be set. ER-AH: Level 1 = 20/30/40 m³/h, level 2 = 60/100 m³/h can be set.)
