Article number: 0082.0116
Manufacturer: MAICO

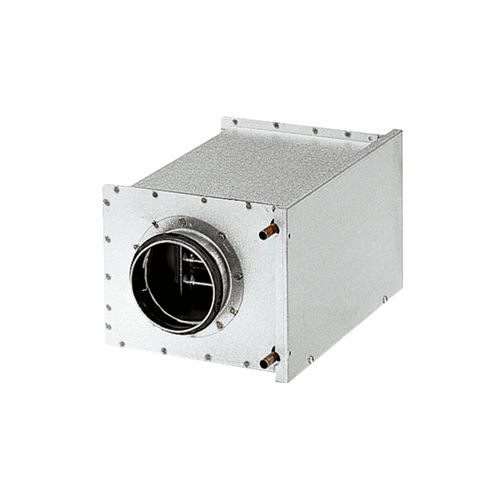

WRH 10-1 - short description
Water air heater, sheet steel, galvanised, 1.3 kW, DN 100
WRH 10-1 - Product description
Water air heater for ventilation systems.
Connections made of copper.
Housing cover can be removed for service work.
With rubber seal on the air connection couplings.
Technical data
Installation position vertical / horizontal
Housing material Sheet steel, galvanised
Weight 3,5 kg
Nominal size 100 mm
Open cross section 1.012 cm²
Width 225 mm
Height 183 mm
Depth 380 mm
Air heater type Water
Heater power rating 1.300 W
Mass flow 55 kg/h
Inlet temperature 70 °C
Return flow temperature 50 °C
Max. water temperature 100 °C
Max. water pressure 6 bar
Water pressure difference 500 Pa
Packing unit 1 piece
Range C
GTIN (EAN) 4012799821168
