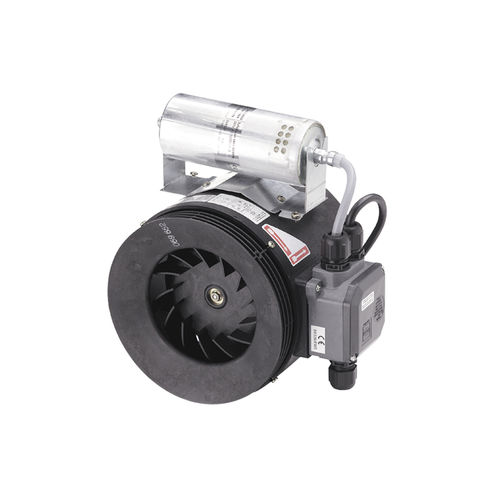

Extractor fan ERM 18 / 22 / 25 EX E
centrifugalductcommercial

extractor fan
extractor fan
extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, centrifugal
Installation
duct
Sector
commercial
Material
metal
Air flow

310 m³/h, 560 m³/h, 870 m³/h (10,947.5 ft³/h)

Description

Article number: 0080.0290 Manufacturer: MAICO Application examples: Environment with explosion hazard (zone 1 and 2), Dye shop, Battery room, Commercial premises, Production facility ERM 18 Ex e - short description Semi-centrifugal duct fan, DN 180, alternating current, explosion proof ERM 18 Ex e - Product description Features Explosion protection in accordance with ATEX. Ex II 2G Ex e IIB+H2 T3/T4 Gb. For usage temperatures of -20°C ≤ Ta ≤ +50°C. MAICO Ex fans fulfil the safety requirements of European Directive 2014/34/EU for units and protective systems in explosion-endangered areas. For zone 1 and 2. Housing and impeller are made from high quality synthetic material, antistatic Semi-centrifugal impeller, favourable flow technology. Inflow direction equals outflow direction. Thus resulting in simple installation. Can be fitted in any position. Air flow direction Airstream and rotational directions are indicated by arrows marked on the fan housing Motor Robust motor with ball bearings, maintenance-free. Capacitor motor with operating capacitor fitted ready for use on fan. Mounting instructions Inlet and outlet side connection couplings for direct installation in ventilation ducts. Reducers for connecting to different duct diameters (intake or exhaust sockets); see accessories. Use ELM-Ex flexible cuffs to prevent transfer of vibrations onto the duct system. ERM 22 Ex e: 2 reducers to DN 200 included in scope of delivery. Electrical connection Terminal box fitted to fan housing, explosion proof.
