Lifting telehandler MHT 790

for structure

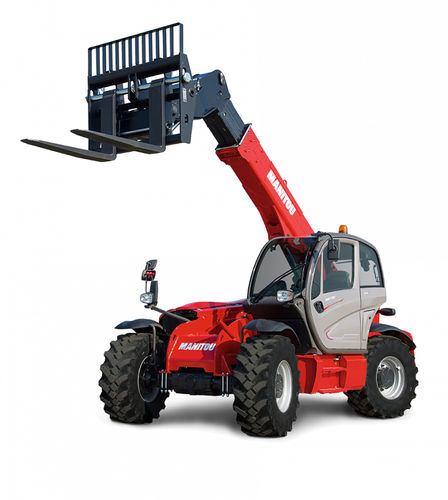

The MHT 790 is a telescopic handler with a capacity of 9 tonnes and a maximum lifting height of 7 metres. It is equipped with a 145 hp engine and a hydrostatic transmission that makes the movements extremely precise. Thanks to the 4 driving and steering wheels, it is easy to manoeuvre on all types of terrain in complete safety. The MHT 790 telescopic handler is used in construction, quarries and industry. It can be equipped with a wide range of attachments: forks, positioner, hook and winch, shovel, man basket and tyre grippers, cylinders and tubes. For maximum comfort, this machine is equipped with a panoramic, ergonomic cab, Easy Step access, JSM joystick and colour touch-screen display. Max. capacity 19842 lb Load center of gravity 24 in Max. lifting height 22 ft 4 in Maximum outreach 12 ft 2 in Overall length 21 ft Unladen weight (with forks) 29586 lb Ground clearance 1 ft 5 in Wheelbase 9 ft 5 in Length to face of forks 17 ft 1 in Overall width 8 ft 1 in Overall height 8 ft 4 in Overall cab width 3 ft 1 in Tilt-up angle 15 ° Tilt-down angle 109 ° External turning radius (over tyres) 15 ft 6 in Forks length / width / section 47 in x 8 in x 2 in Standard tires 445/65 R22,5 Number of front wheels / rear wheels 2 / 2 Drive wheels (front / rear) 2 / 2 Steering mode 2 wheel steer, 4 wheel steer, Crab mode
