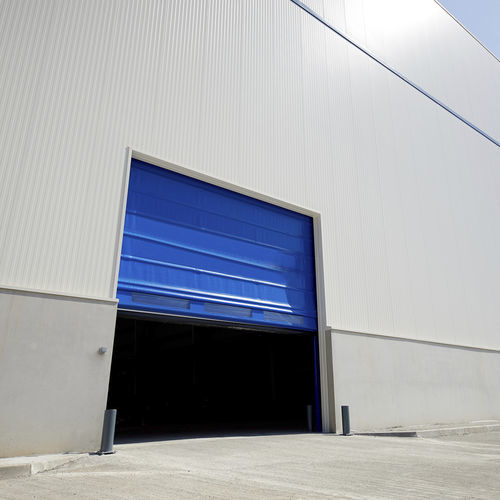

Fold-up industrial door

fabricstainless steelsteel

Product overview
The high-speed fold-up door is designed for intensive use in large external openings. Its sealed fabric curtain with reinforcing crossbars offers protection against draughts and adverse weather while enabling separation and climatization of work areas. The door is configurable to suit specific project requirements.

Applications / Uses

• Industrial external openings
• Logistics facilities and warehouses
• Food industry (area separation and climate control)
• General industry requiring high-speed vertical opening and wind resistance

Main features

• Maximum dimensions: up to 7000 × 7000 mm
• Suitable for indoor and outdoor installations
• High resistance to wind and draughts; recommended for exterior closures
• Fabric with reinforcing crossbars for weather protection
• Standard opening speed: fixed 0.8 / 0.8 m/s (opening/closing)
• Safety: safety photocell in guide (reverses on obstacle), lower safety edge (reopens on touch)
• Standard drive and control: internal and external push buttons

Optional equipment

• Motor position: lateral or frontal; right or left
• Structure in AISI 304 stainless steel
• Motor cover
• Silk-screening on fabric (custom graphics)
• Adjustable opening speed up to 1.5 / 1.0 m/s depending on dimensions
• Opening options and accessories: UPS (battery backup), remote control, radar detectors, presence/motion sensors
• Coloured or silk-screened custom fabric

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes (options)

• Shapes available: square, rectangular
• Positions: horizontal or vertical
• Quantity: multiple peepholes can be installed

Notes

• Use and sizing recommendations depend on project-specific requirements and environmental conditions
• Multiple configuration options allow customization to meet installation needs

Technical specifications

• Maximum dimensions: 7000 × 7000 mm
• Use: indoor and outdoor
• Wind resistance: Class 2 (up to 6000 × 6000 mm)
• Structure: lacquered steel in RAL colour (to be defined); optional AISI 304 stainless steel
• Opening speed (standard): fixed 0.8 / 0.8 m/s; optional adjustable speeds up to 1.5 / 1.0 m/s depending on dimensions
• Fabric: tear and tensile resistance in accordance with applicable standards; reinforcing crossbars
• Safety systems: guide photocell, lower safety edge reversing on contact; optional photocell barrier
• Drive and control: standard with internal and external push buttons; optional UPS and remote control integration
