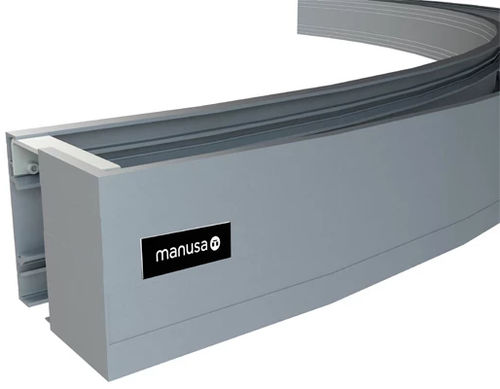

Door automation VISIO+ CURVO

The Visio+ Curvo operator is specially designed for the range of curved or semicircular doors. 2 curved mobile leaves can be installed, that move along the perimeter in front of 2 fixed leaves. The curvature, which may be half a circumference or just a few degrees, defines the two possible types: concave or convex. •It features IoT technology, for the connectivity and remote control of the door. •Motor group comprised of 2 motors belt and electronics. •The height of the chassis is 160 mm •Direct drive operator •Maximum weight of 90 Kg per leaf for bi-parting opening •Maximum weight of 120 Kg per leaf for side opening. •The Visio+ operators range features a durability certificate for 1 million cycles according to Standard UNE 16361:2014+A1:2017. •Opening speed 1 m/s.
