Sectional industrial door ESTÁNDARpolyurethanesteelinsulated
Add to favorites
Compare this product
Characteristics
- Opening system
- sectional
- Material
- polyurethane, steel
- Technical characteristics
- insulated, wind-proof, noise-reduction, airtight, thermally-insulated
- Applications
- for warehouses
- Other characteristics
- glazed
Description
Overview
Main features
Lifting systems & options
Technical specifications
Available colours
Additional information (FAQ)

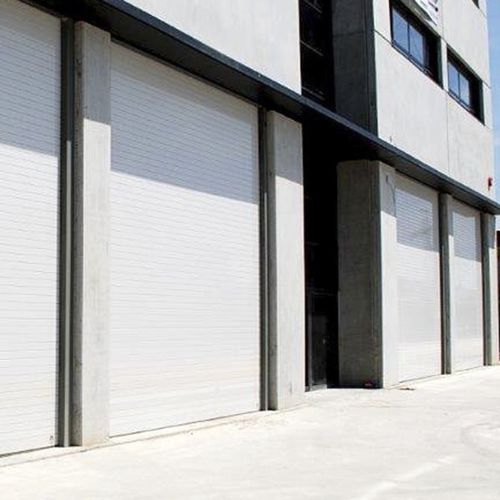

- Industrial/logistics sectional door for outdoor use, designed to provide thermal insulation and airtight sealing.
- Silent operation and optimised design for low visual impact within architectural contexts.
Main features
- Sandwich panels 40 and 75 mm thick with high-density expanded polyurethane core.
- Grooved and embossed panel profiles.
- Phosphate wire torsion springs; galvanized steel guides and fittings.
- Wind resistance: class 3.
- Opening speed: 0.3 m/s.
- Flexible joints at hinges and at lateral, upper and lower ends to improve thermal and airtight performance.
Lifting systems & options
- Available lifting systems: standard lift, high lift, vertical lift and low headroom.
- Option to install vision panels (windows) in the panels.
- Various panel finishes; possibility of RAL colours and imitation materials such as steel or wood. Consult available options.
Technical specifications
- Use: outdoor.
- Panel thicknesses: 40 / 75 mm.
- Core: high-density expanded polyurethane.
- Opening speed: 0.3 m/s; wind resistance: class 3.
Available colours
- RAL 7011
- RAL 6005
- RAL 3000
- RAL 1015
- RAL 7016
- RAL 5010
Additional information (FAQ)
- Types: sectional doors are classified by lifting system to adapt to the available headroom.
- Low headroom option enables installation with minimal lintel space (from 200 mm).
- These doors improve thermal insulation and security for industrial premises.
