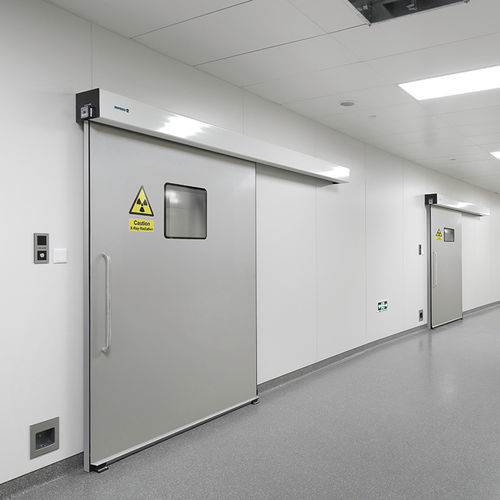

Sliding industrial door EMPLOMADA

stainless steelHPLlead

Overview
The lead-lined hermetic EI automatic sliding door combines EI fire resistance with radiological shielding and high airtightness, designed for medical and controlled environments where both fire safety and radiation protection are required.

Applications

• Radiology and X‑ray rooms
• Hospital wards and clinical imaging departments
• Pharmaceutical laboratories and controlled‑atmosphere rooms
• Clean rooms and sensitive industrial facilities requiring combined fire and radiation protection

Certifications and tests

• Fire tests in accordance with EN 1634-1:2014+A1:2018 (operator, frame and leaf tested as an assembly)
• Fire resistance: up to 60 minutes (operator side not exposed to fire)

Key features

• Radiological shielding available with selectable lead lining (2 mm or 3 mm Pb)
• Visio+ hermetic HD operator ensuring elevated airtightness and integrated IoT capability for monitoring and control
• Single‑slide configuration (left or right) without fixed leaf
• Automatic closing on fire alarm activation and/or power failure
• Flush‑mounted vision panel option (450 x 450 mm)
• Stainless steel tubular pull handle (600 mm) and recessed stainless steel handle on the opposite side
• Solid core leaf finished in HPL with up to 10 colour options

Options and available material formats

• Leaf finish: HPL panelled leaf with multiple colour options (up to 10)
• Vision panel: flush‑mounted square 450 x 450 mm
• Handles: 600 mm tubular stainless steel or recessed stainless steel handle
• Radiation protection: selectable lead thickness (2 mm or 3 mm) according to application
• Documentation: technical datasheets, DWG/PDF drawings and BIM (RFA) files available

Suitability / Sectors

• Healthcare (hospitals, clinics)
• Medical imaging and radiology departments
• Pharmaceutical production and laboratories

Technical specifications

• Product family: sliding doors
• Commercial denomination: Lead‑lined hermetic EI door
• Brand: Manusa
• Fire test standard: EN 1634-1:2014+A1:2018
• Fire resistance: up to 60 minutes (operator side not exposed)
• Radiological shielding: up to 3 mm Pb (options: 2 mm / 3 mm)
• Operator: Visio+ hermetic HD with IoT capability
• Configurations: single slide (left / right), without fixed leaf
• Emergency behaviour: automatic closing on fire alarm activation and/or power failure
• Vision panel option: flush‑mounted 450 x 450 mm
• Handles: tubular stainless steel 600 mm; recessed stainless steel on opposite side
• Leaf finish: HPL panelled; up to 10 colour options
• Documentation available: product technical sheet, DWG/PDF drawings, BIM (RFA)
