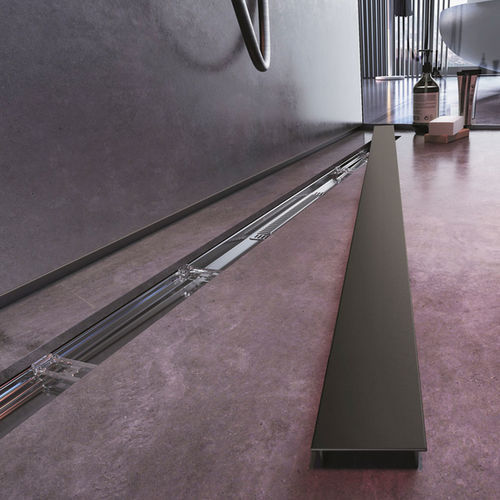

Aluminum linear shower drain AQUA

stainless steelPPcustomizable

Product range PP Drain Aqua is a range of linear drains for floor-level showers, suitable for ceramic tiles, natural stone and other coverings. The drain bodies are manufactured in stainless steel AISI 316 – DIN 1.4404 and are supplied with a waterproofing membrane solidly glued to integrate with shower-area waterproofing systems.

Main features

• Material: stainless steel AISI 316 – DIN 1.4404.
• Covers and frames: available in Classic, Design, Flat and Invisible variants, with or without frame.
• Cover adaptability: adjustable supports allow adaptation to covering thicknesses from 6 to 18 mm (Invisible Cover: suitable for any thickness).
• Drain options: horizontal siphon DN40 (drainage capacity 50 L/min) or direct vertical drain DN50.
• Floor-level height (with siphon): 70 mm.
• Cover lengths available: 60–120 cm.
• Waterproofing: drain body supplied with a permanently glued membrane compliant with DIN 18534.

Available covers / examples

• Classic Cover: stainless steel AISI 316, polished or satin; includes frame and adjustment supports 6–18 mm; reversible/tileable when inverted (tileable up to 12 mm).
• Design Cover: central-drain aesthetic, stainless steel AISI 316; lengths 60–120 cm.
• Flat Cover: flush linear appearance, multiple finishes; lengths 60–120 cm; adjustment supports 6–18 mm.
• Invisible Cover: aluminium cover designed to be tiled over for a concealed finish; available in various lengths; suitable for coverings of any thickness.

Drainage options / installation

• Horizontal siphon DN40 with approx. 50 L/min drainage capacity for standard installations.
• Direct vertical drain DN50 for installations requiring vertical outlet.
• Floor-level height with siphon: 70 mm; adjustable supports and glued waterproofing membrane facilitate integration with substrate and waterproofing layers.

Applications Suitable for floor-level showers in residential and contract projects where continuity with the floor covering and integration with waterproofing systems are required; compatible with ceramic, natural stone and similar coverings.

Technical specifications

• Brand: Mapei
• Model: PP DRAIN AQUA
• Material: stainless steel AISI 316 – DIN 1.4404
• Covers adaptable to tile thickness: 6–18 mm (adjustment supports); Invisible Cover: any thickness
• Drain options: DN40 horizontal siphon (50 L/min) or DN50 vertical
• Floor-level height (with siphon): 70 mm
• Cover lengths: 60–120 cm
• Waterproofing membrane: permanently glued, compliant with DIN 18534
• Finishes: polished or satin stainless steel; aluminium for Invisible Cover
