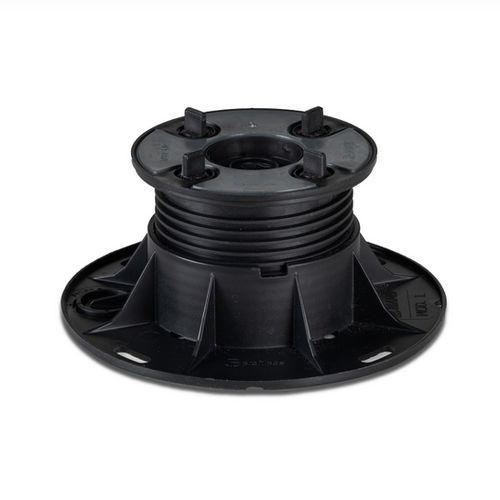

PP terrace pedestal PP LEVEL DUO MAXI

aluminiumrubberself-leveling

Overview
PP LEVEL DUO MAXI is a range of adjustable supports for outdoor raised floors designed and produced by Profilpas. The system provides quick, accurate installation for balconies, terraces and outdoor areas. The tilting head compensates surface slopes up to 5% and, thanks to the Fixed Head Ring, can be converted to a fixed head directly on site. The supports are engineered for high load capacity and weather resistance and are compatible with numerous accessories for different installation needs.

Components (selected)

• PP level DUO MAXI - Aluminium joist for decking — Item name: PPL/5030/T; Length: 200 cm; Finish: Natural aluminium; Applications: Balconies and terraces.
• PP level DUO MAXI - Aluminium joist — Item name: PPL/T1; Length: 240 cm; Finish: Natural aluminium; Applications: Balconies and terraces / Outdoor spaces.
• PP level DUO MAXI - Base + screw — Item names: S/28/39B, M/38/57B, L/56/91B, XL/87/150B; Notes: Base + screw; Adjustable heights: S = 28–39 mm, M = 38–57 mm, L = 56–91 mm, XL = 87–150 mm; Applications: Balconies and terraces / Outdoor spaces.
• PP level DUO MAXI - Head for 2, 3, 4 mm joints — Item names: PPLM/T2, PPLM/T3, PPLM/T4; Applications: Balconies and terraces / Outdoor spaces.
• PP level DUO MAXI - Head for aluminium joist — Item name: PPLM/TA; Applications: Balconies and terraces / Outdoor spaces.
• PP level DUO MAXI - Head for decking — Item name: PPLM/TD; Applications: Balconies and terraces / Outdoor spaces.

Accessories (selected)

• ADJUSTMENT KEY — Item name: CR/M.
• Battery-powered vacuum suction cup — Item name: PPL/V.
• Corner clip — Item name: PCC/02 (polished stainless steel AISI 304).
• Extension for PP Level - h. 10 mm — Item name: P1/10.
• Extension for PP level DUO MAXI - h. 80 mm — Item name: P1/80TE.
• Levelling disk for base — Item name: PPL/DLB (diam. 21 cm x 0.2 mm thick).
• Levelling disk for head — Item name: PPL/DLT (diam. 12 cm x 0.2 mm thick).
• Perimetral clip — Item names: PCC/01 (stainless steel) and PCC/03; Wall clip (PCC/05 polypropylene).
• Rubber mat — Item name: PPL/S (rubber mat diam. 21 cm x 0.2 mm thick).
• Slab lifting handle — Item name: PPL/MS.
• Tile lifter — Item name: PPL/GS (for 4 mm joints).

Related documentation
Technical data sheet available (English).

Technical features / specifications

• Function: Adjustable pedestal system for outdoor raised floors, for balconies, terraces and outdoor spaces.
• Tilting head with Fixed Head Ring: tilting head compensates slopes up to 5% and can be converted to a fixed head during installation.
• Available head widths for joints: 2 mm, 3 mm, 4 mm.
• Base + screw variants with adjustable height ranges: S = 28–39 mm; M = 38–57 mm; L = 56–91 mm; XL = 87–150 mm.
• Extensions available (examples: 10 mm, 80 mm) and long extension tubes up to 994 mm where required.
• Aluminium joists available in different lengths (e.g. 200 cm and 240 cm) with natural aluminium finish.
• Wide accessory range: aluminium joists, rubber mats, steel clips, perimetral clips, slab lifters, vacuum suction tool, levelling disks.
• Materials: polypropylene components, aluminium profiles, stainless steel clips, rubber pads.
• Operating temperature range: -40 °C to +75 °C.
