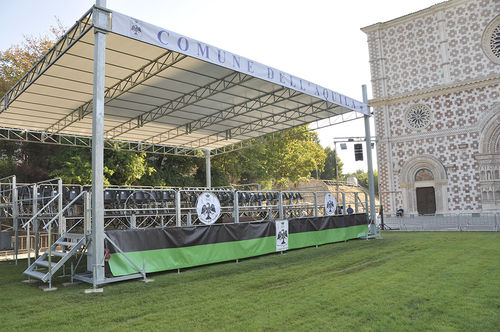

Outdoor staging system

The only real and unique Italian stage. Orlando modular stage, the only real and unique Italian stage, has been planned, patented and manufactured to allow extreme versatility. The exclusive system of slotting panels makes the assembly process extremely fast as no screws or similar joints are required and allows the usage of both sides of the panels. The elements of the platforms are planned to fit the spaces in the most economic way allowing the least obstruction on truck beds and in storage. The base module is 2.00 x 2.00 m. Alternatively, the use of 2.00 x 1.00 m and 1.00 x 1.00 m is also possible. The protection of the structure against corrosion is realized through hot-zinc coating, compliant with the relevant rule UNI EN 1090, UNI EN ISO 14713, ISO 1461. Wooden-panels flooring The floor, solid and compact, is made of 200 x 50 cm, three-layered spruce panels, 27 mm thick, which are pressed together and artificially dried. The surface of the panels is treated with thermo-set resins making them resistant to climatic variation. The panels are yellow or mahogany coloured and can be used in all possible combinations. Alternatively, special, grade 1 fireproof non-slip on both sides – brown coloured panels, made of 19-layered birch wood, are available. Access stairs, parapets and adjustable feet Completely newly designed, the access stairs of the stage, equipped with handrails, uses a functional hook that can be installed in every module of the structure. The parapet frame, included on three sides of the stage, is made of elegant zinc-coated metal segments.
