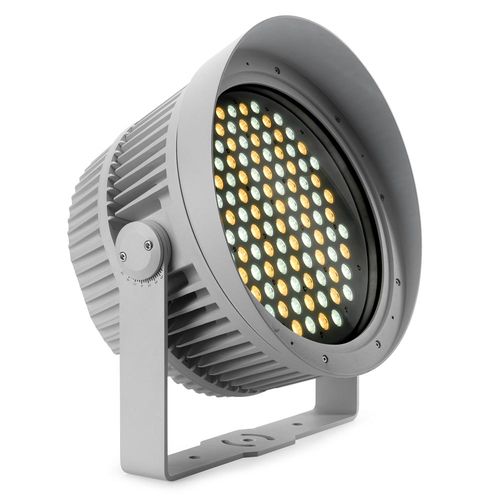

Exterior Wash™ 320 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate large structures, building facades and bridges. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.
The Exterior Wash 320 is designed for variable color temperature (2700K-6500K) applications and is based on separate 2700K and 6500K LEDs
Variable color temperature control with 6 beam angle options
Functional and discreet optional snoot which integrates with the design of the fixtures
Control via DMX, RDM and OLED display
Up to 15.100 lumens at full white
Six different beam angle options
Internal power and control (DMX, RDM and OLED display)
0 – 100% intensity control
Intensity: 0 - 100%
Control systems: DMX, RDM
Setting, addressing, standalone programming: Control panel with OLED display
Stand-alone control: Up to 20 scenes with global fade/hold times
DMX channels: 2
Receiver: RS-485
DMX compliance: USITT DMX512-A
Firmware update: Serial upload via DMX link
Light source: 2700 K and 6500 K LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
LED manufacturer: Cree
Beam Angle Options:
No diffuser: 7.5°
Narrow diffuser: 11.5°
Medium diffuser: 25°
Wide diffuser: 41°
Very wide diffuser: 59°
Asymmetric diffuser: 65° x 14.5°
*Figure obtained under manufacturer's test conditions
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
